SPECIFICATIONS

Brand Name: other

Gears	10 Speed
Frame Material	Carbon Fibre
Wheel Size	29''
Voltage	48V
Power Supply	Lithium Battery
Braking System	Hydraulic Disc Brake
Battery Capacity	15Ah
Torque	>100 Nm
Charging Time	>3 hours
Motor position	Central Motor
Battery Position	Down Tube
Tire Width	27.52.8'', More, 292.4''
Place of Origin	Zhejiang, China
Brand Name	4LEAF
Model Number	ULTRA
Range per Power	> 60 km
Max Speed	>50km/h
Product name	TruckRun Ebike
Motor	TruckRun M09 1200w 240Nm
Display	TruckRun TK.CC01
Fork	RST 140/160mm
Logo	OEM
Throttle	Thumb throttle
Sensor	Torque Sensor
Derailleur	Shimano DEORE M4100 10 speed
Rotor	180mm
aftersales	one year
Packaging Details	Standard package for bike
Port	Ningbo, Shanghai or any port in China
Supply Ability	200 Set/Sets per Month

Product Description

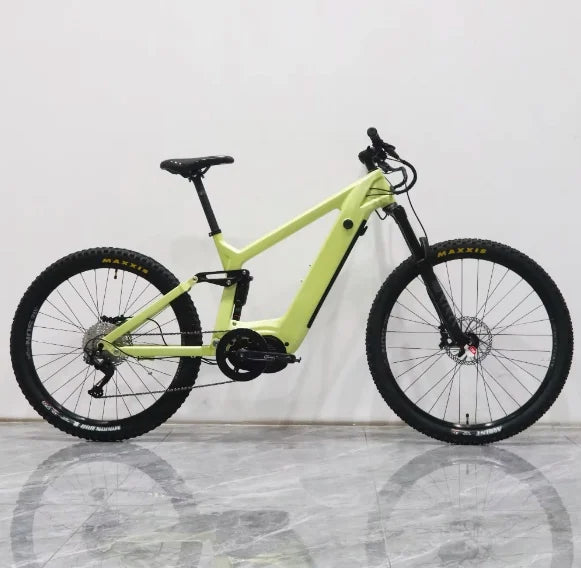

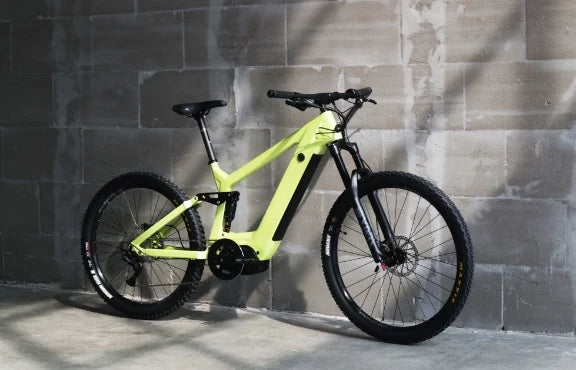

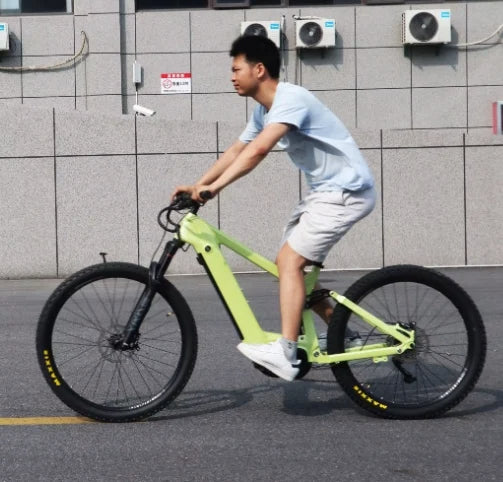

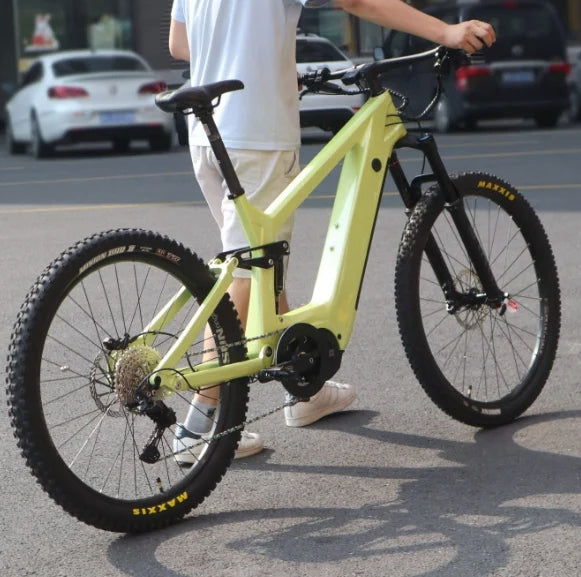

XC Mountain Electric Bike 240nm Best Electric Bike TruckRun Ebike M09 High End 1200w Mid Drive Electric Mountain Bike

Bafang M620 version available for this eMTB

Rest Designs of this Mountain Electric Bike

Part	Specification
frame	ULTRA, L
fork	RST VIBE, travel 140mm;
shock	DNM AO-36RC 190L*51mm;
cassette	Shimano DEORE M4100 10 speed
crankset	TruckRun 38T 104BCD
case	Reention Rhino 7 42*21700
battery	48V 15AH
charger	51.8V/3A wide voltage 100-240V DC2.1 UL CE RoHS
motor	TruckRun 48V 1000W OR 1200W//240nm
display	TruckRun Color screen
tire	CST/Innova 29*2.4
brake lever	power-off，4-piston hydraulic disc brake, 6 nails 180mm

Model Number

ULTRA

Country/Region
