SPECIFICATIONS
Aerial Photography: Yes
Aircraf Operating Frequency: 2.4 GHz
Brand Name: DJIRCTOY
Camera Features: 1080p HD Video Recording
Camera Integration: Camera Not Included
Camera Mount Type: Fixed Camera Mount
Category: Camera Drone
Connectivity: WiFi,Remote Control
Display Control: No

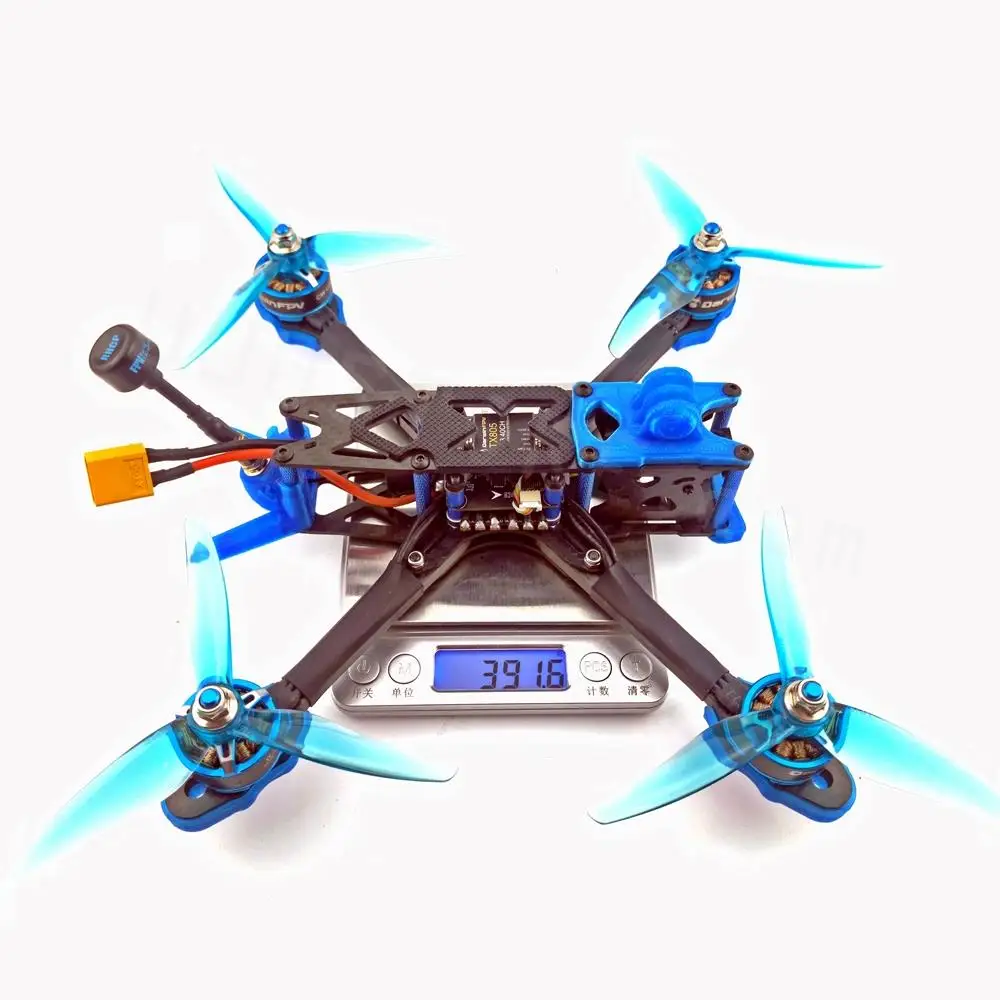

Drone Weight: 355G
Equipped with Aerosol Spraing System/Spread Tank Volume: No
Flight Time: others
GPS: No
Hign-concerned Chemical: None
Integrated propeller guard: Not Include
Max Takeoff Weight: <1kg
Max Wind Speed Resistance: < 10 KM/H
Motor Type: Brushless Motor
Obstacle avoidance types: No support
Origin: Mainland China
Remote Distance: OTHER
Sensor Size: None
Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）
Indoor/Outdoor Use : OUTDOOR
Camera Mount Type : Other
Controller Mode : MODE2
Model Number : Darwin240
Controller Battery : 2
Control Channels : 6 CHANNEL
Remote Distance : 1000
Remote Control : No
Type : HELICOPTER
Aerial Photography : Yes
Package Includes : Original Box
Material : Carbon Fiber
Features : App-Controlled
Origin : Mainland China
Recommend Age : 12+y

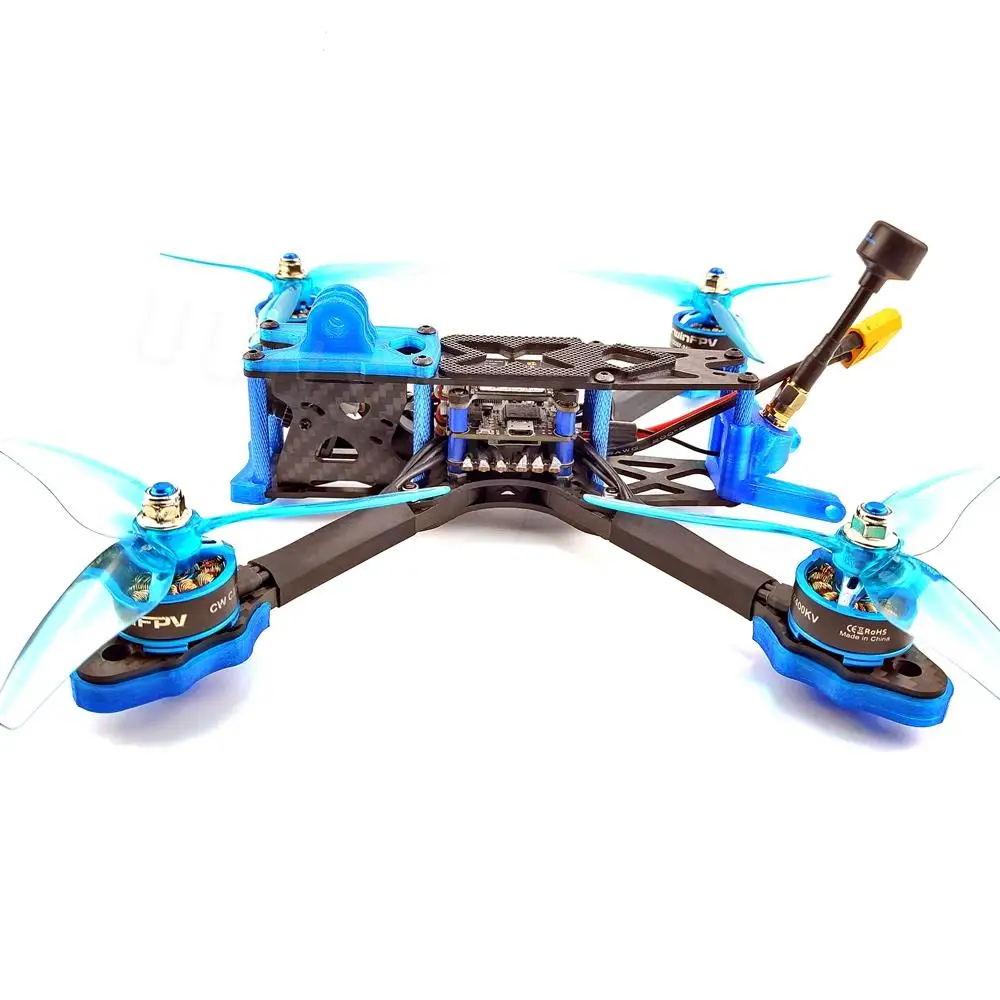

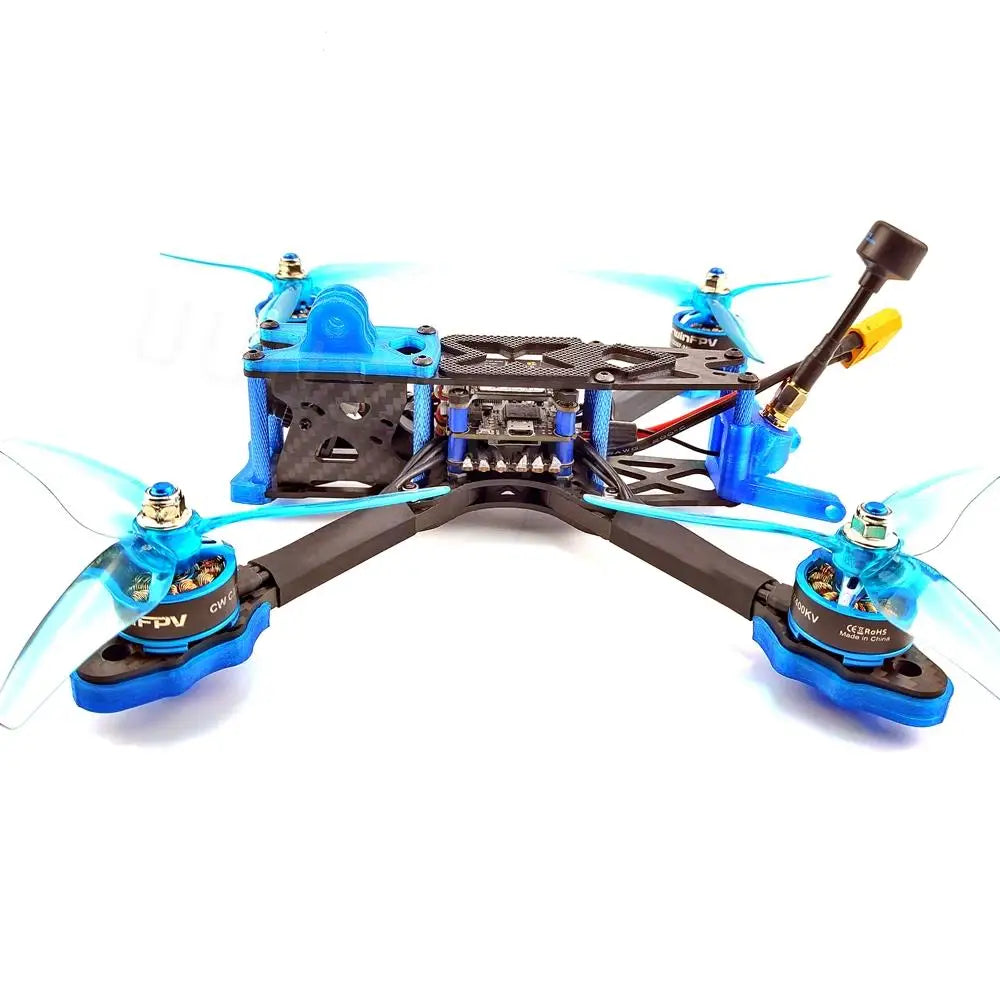

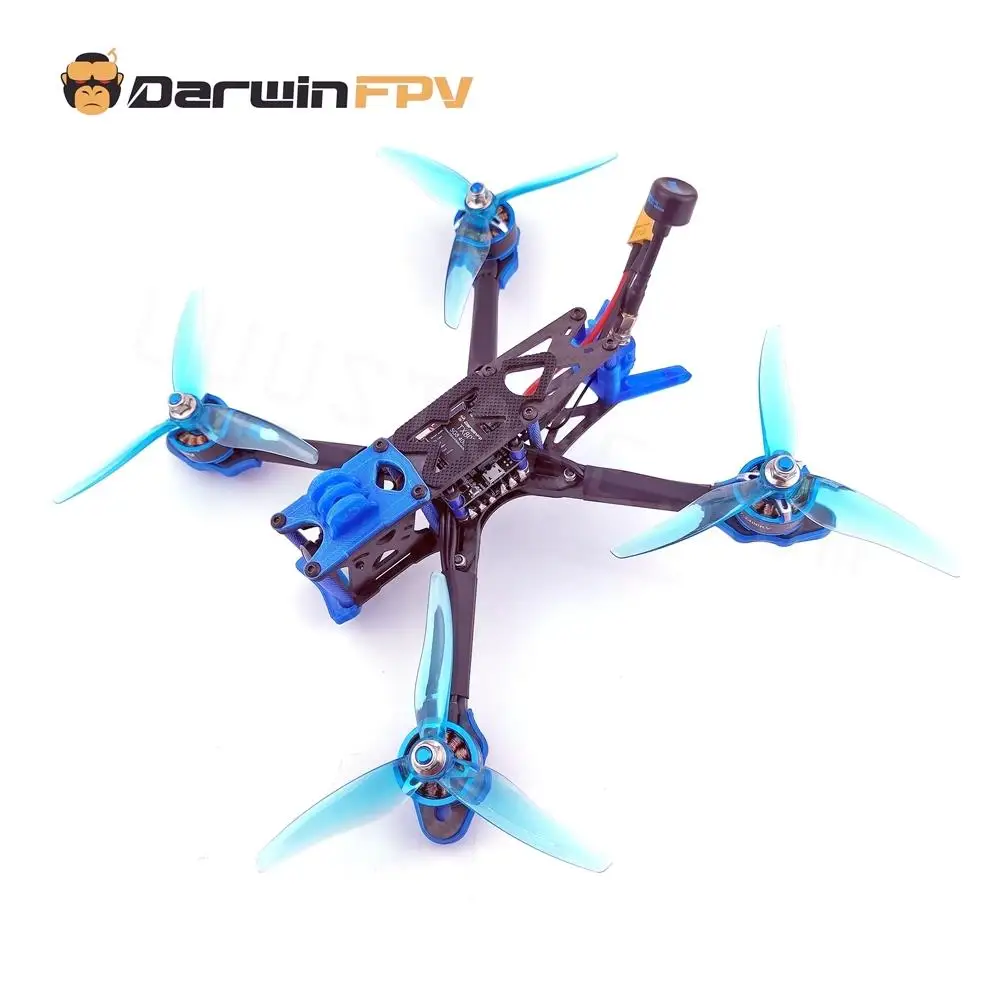

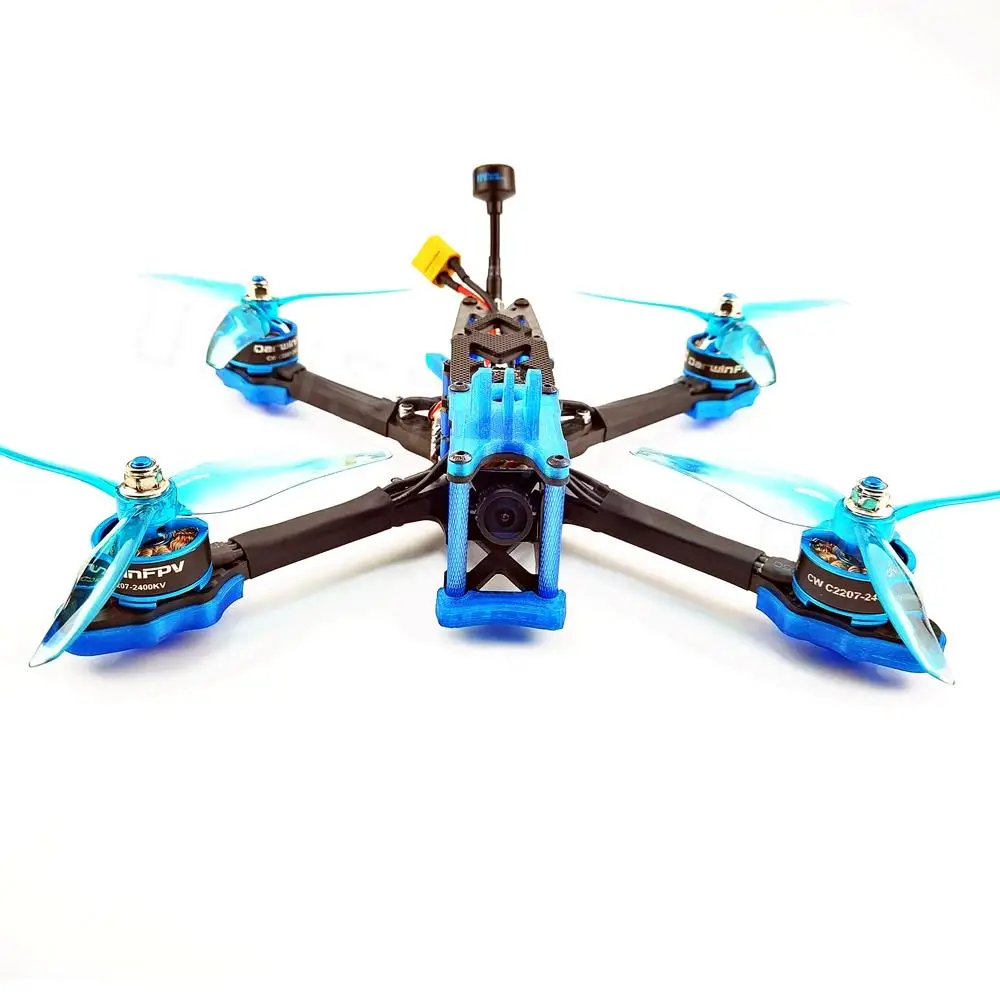

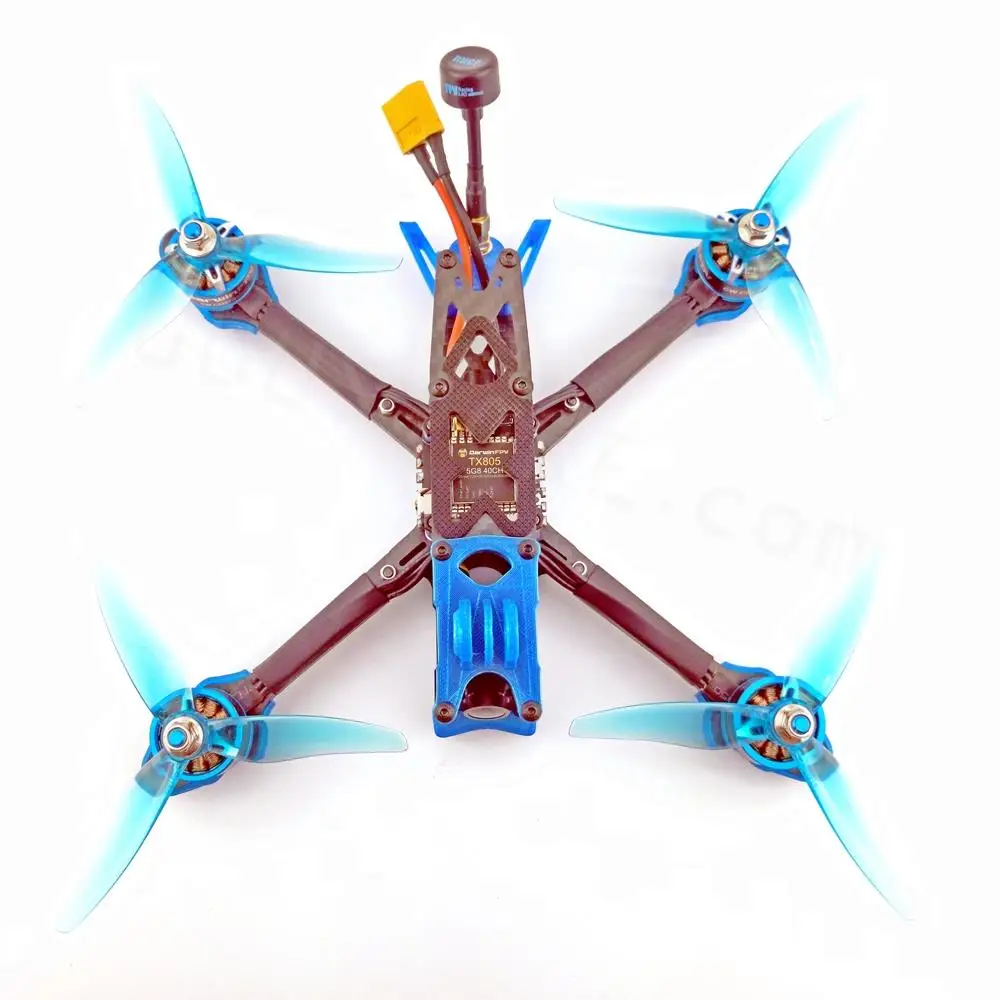

2022 DarwinFPV Darwin240 FPV Drone PNP Johnny 5 Quadcopters 5Inch 240mm F4 FC 50A ESC 5.8G VTX 1500TVL Camera 2207 2400KV Motor
Item name: Darwin240
Comes without battery, charger, receiver or remote control .
DarwinFPV-Johnny 5 |
Wheelbase:240mm Framearmthickness:5.5mm Framekitmaterial:3Kcarbonfiber |
|

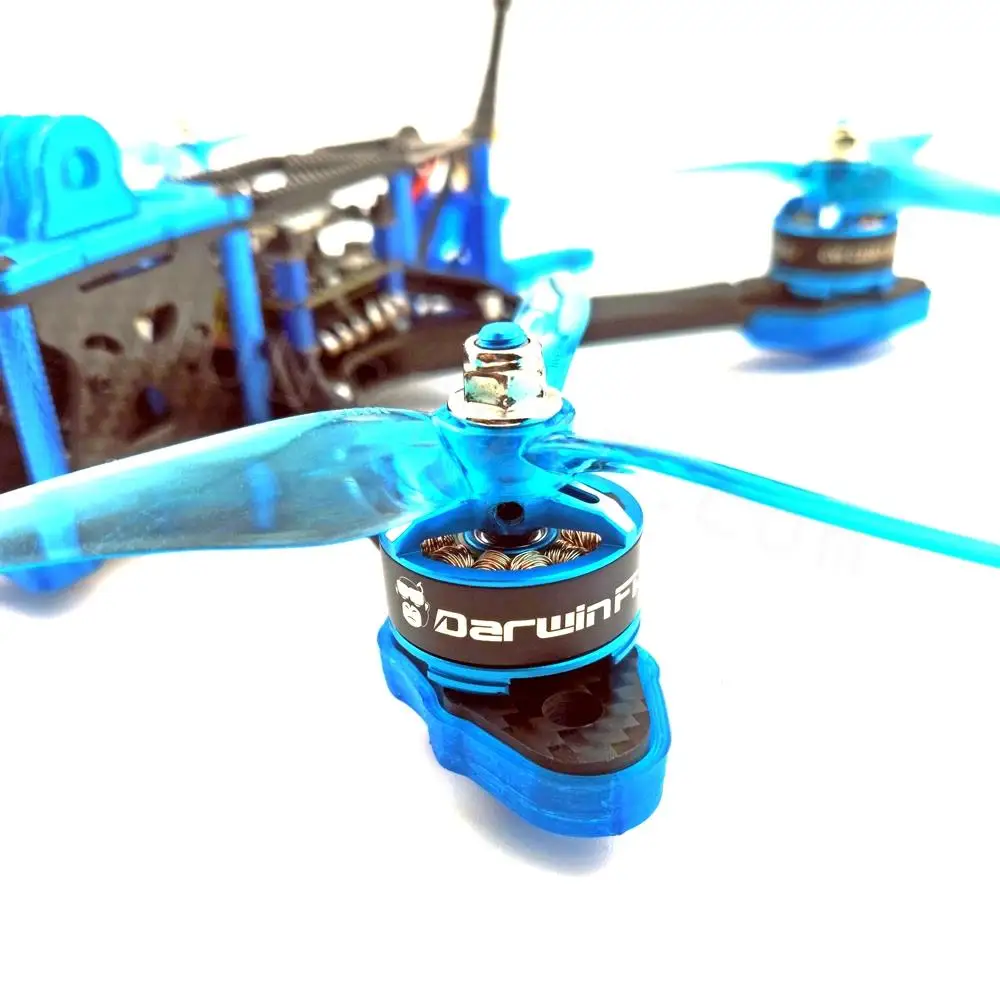

DrawinFPV 2207-2400KV Brushless Motor |
Motor KV:2400KV Idle Current (Io/10V):0.81A Lipo Cell:3-4S Weight:36.4g Max Continuous Current:32A Max Continuous Power:765W Configu-ration:12N/14P Prop adapter shaft:M5 Bolt holes spacing:16mm Bolt thread:M3 |

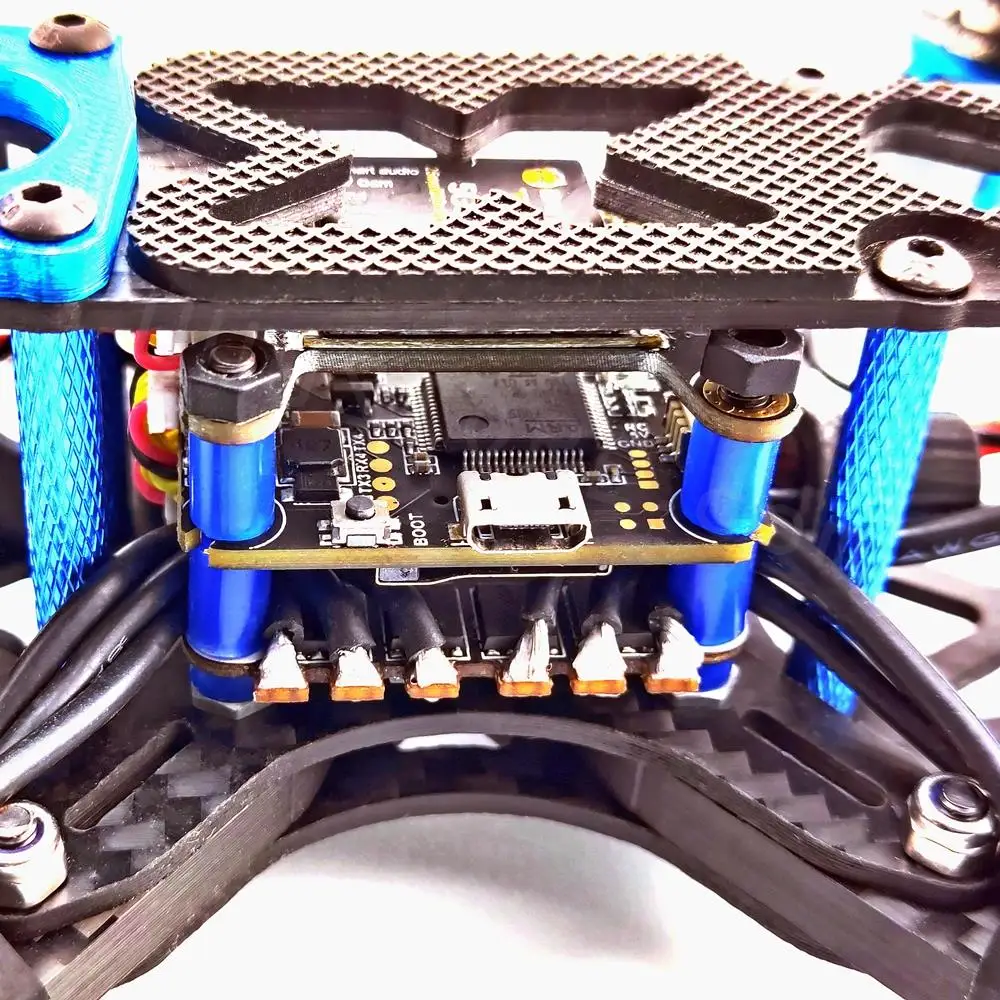

4IN1 50A BLHeli_S ESC |
F4-50A stack Continuous current: 50A Peak current: 60A (10S) Lithium battery section number: 2-6S BEC: 5V2A ESC weight: 10.8g Firmware: BL_S Maximum support throttle signal: DSHOT600 Mounting hole: M3 30.5 * 30.5mm |
|
F4 Flight Controller |
F4 Flight contro Lithium battery section number: 3-6S BEC: 10V 1A, 4.5V, 3.3V MCU: STM32F405 Gyro: MPU6000 OSD: AT7456E Firmware: MATEKF405 Weight: 7.2g Mounting hole: M3 30.5 * 30.5mm Support barometer, black box Bluetooth |
|
5.8G 40CH 800mw VTX TX805P |
Frequency: 5.8G Channels: 40CH Input voltage: 7V~24V 5V camera supply: 120mA(MAX)----25mW@12V 5V camera supply: 200mA(MAX)----200mW@12V 5V camera supply: 300mA(MAX)----600mW@12V 5V camera supply: 350mA(MAX)----800mW@12V Extra features: Smart audio Power supply: 5V output for Camera Output power: 25mW/200mW/600mW/800mW switchable Antenna connector: MMCX Cable connector: Solder pads Weight: 8g(excluding antenna) |
|

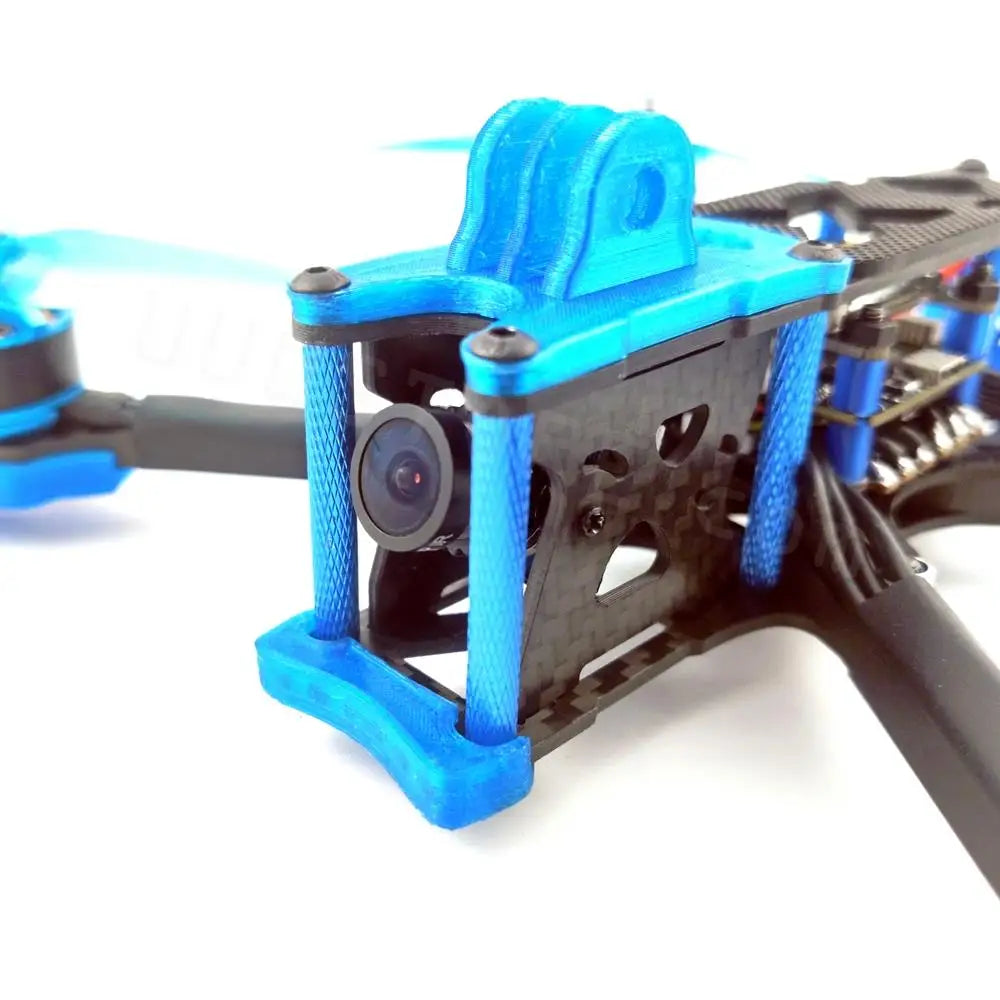

camera |
Resolution: 1500TVL Lens: 2.1mm TV System: NTSC & PAL (switchable) DNR: 3DNR Min. Illumination: 0.001LUX Shutter Speed: PAL:1/50~100,000; NTSC: 1/60~100,000 Wide Power Input: 5-30V Working Temperature: -20℃ ~ +60 ℃ Weight: 6.0g Dimension: 19*19*19mm |
Gemfan Flash 51466 |
Material:PC Mountinghole:5mm Centerthickness:8mm Quantity:1pairs Weight:4g |
LipoBattery |
Not included Recommend 4S |
Package Included:
1x Darwin240 FPV Drone PNP Version
