SPECIFICATIONS

Dear friend, thank you for your interest in our products.

The A3/A4 UV printer is a high-quality printer with many advanced features, such as automatic cleaning, freezing system, vacuum suction cup, bottle rack, infrared automatic height measurement.

It can print directly on a variety of materials, including plastic, acrylic, glass, metal, wood, leather. The printer comes with a 3-year warranty and lifetime technical support.

Notify:

1. This product link includes two printing sizes A3 and A4. All A3 packages can print varnish. A4 UV DTF option can print varnish, A4 uv printer option without DTF can't print varnish.

Specification:

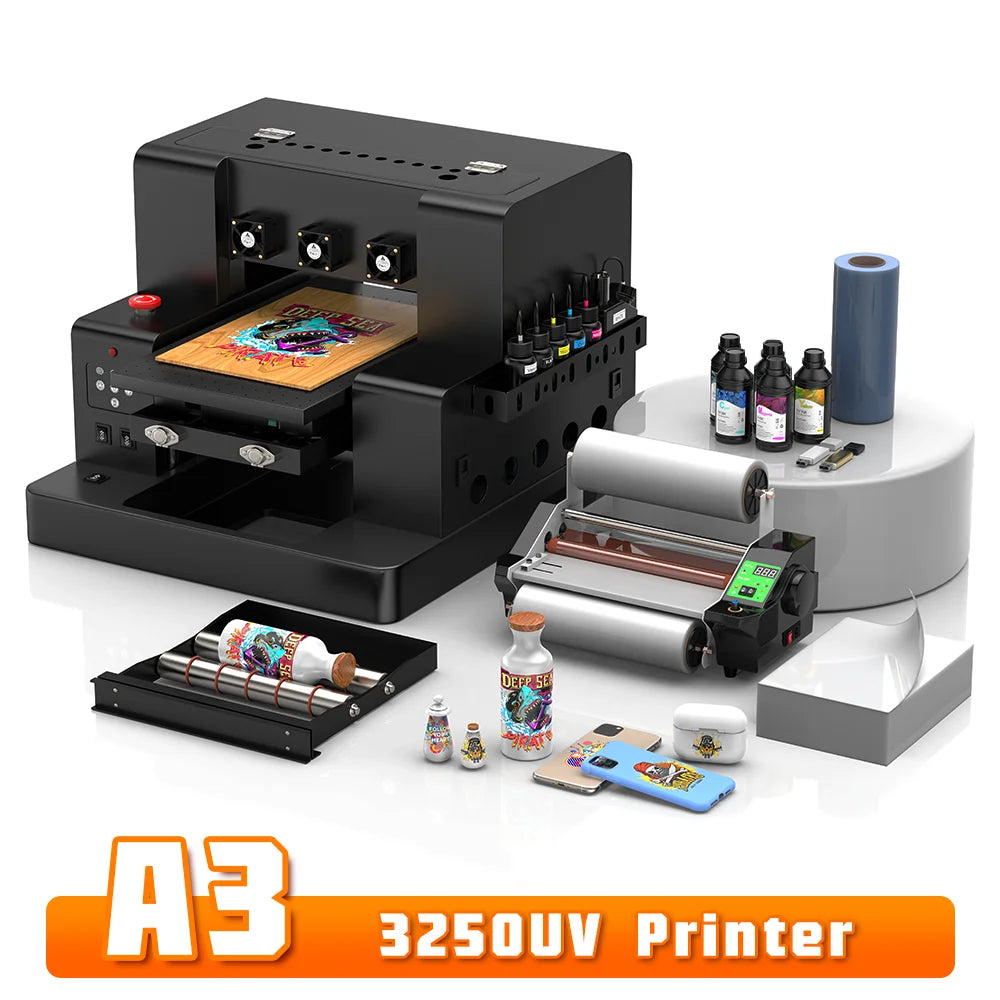

1. Model: A3 L805 3250 UV DF Printer

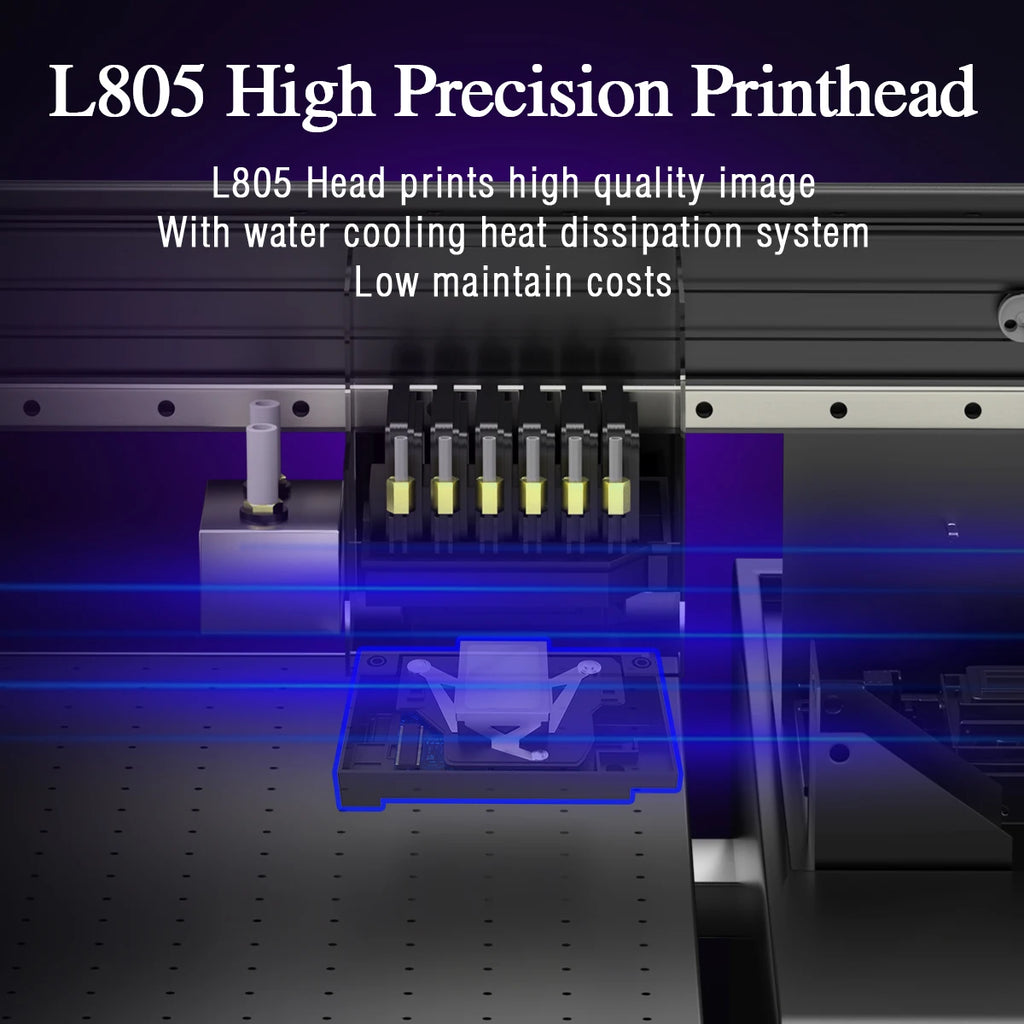

2. Printhead: For Epson L805
3. Print speed: 297*210mm size picture 6-8mins
4. Room temperature: 20-30°C
5. Printable bottle diameter: 20-110mm
6. Print height: 150mm
7. Ink consumption: 1㎡/20ml, each 20ml can print 297*420mm size picture for 6 pieces.

8. Warranty: 3 years warranty excludes damages caused by user, excluding printhead, ink pump, ink tubes, ink dampers, motherboard..)

Advantage:

1. Self developed motherboard, stable performance

a...no need in reset and chip reset, more convenient

b...less unnecessary sensor to reduce double flash error

2.With automatic cleaning function, one button clean, convenient and labor saving.

3.With water cooling heat dissipation, it supports long-time printing and prolongs the service life.

4. Free bottle holder, support 2-11cm bottle diameter

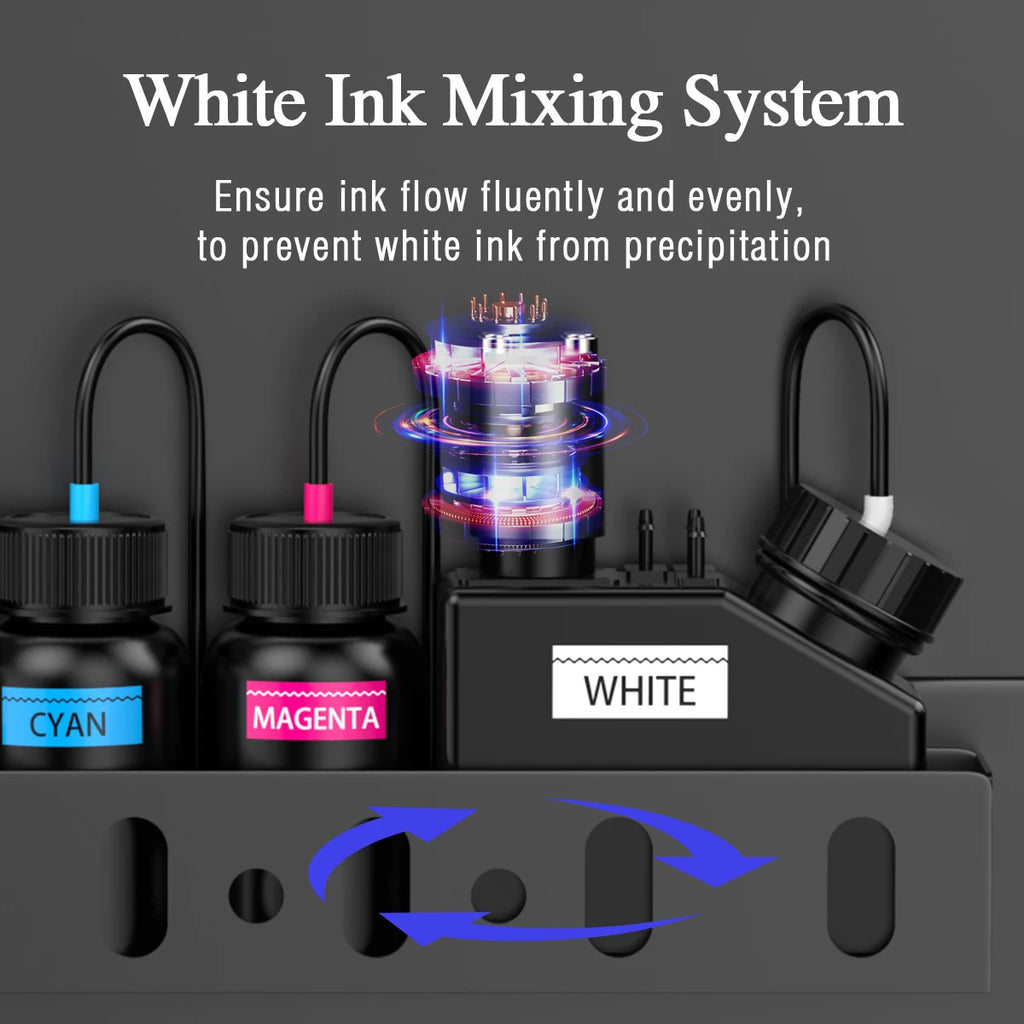

5. White ink stirring system to prevent white ink from precipitation

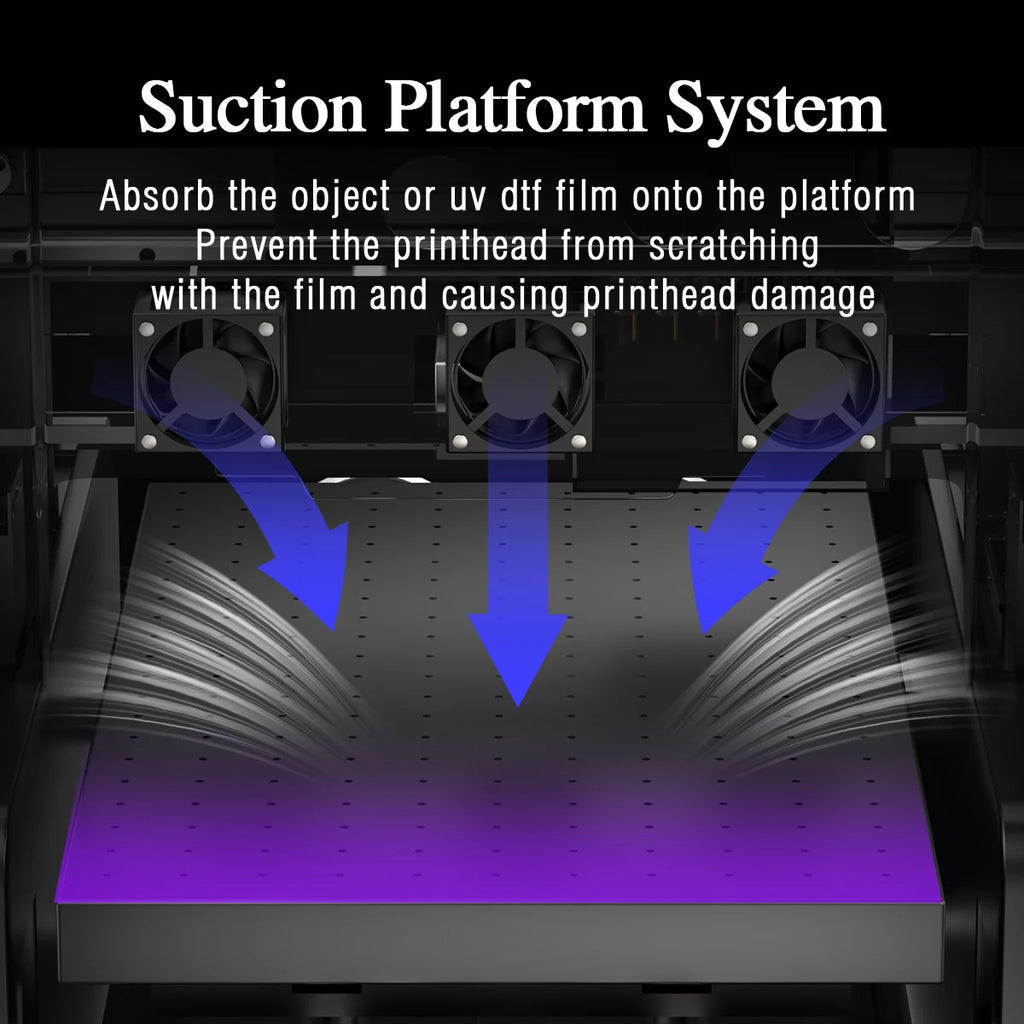

6. A3 size vacuuming suction platform, to prevent film from removing

7.Optional mug holder, pen holder, golf holder, support multiple printing demands

8.The uv lamp radiation size is the same as printing size, which is 32*50cm

A4 UV DTF Printer:

Specification:

1. Model: A4 L805 UV DF Printer
2. Printhead: For Epson L805
3. Print speed: 297*210mm size picture 6-8mins
4. Room temperature: 20-30°C
5. Printable bottle diameter: 20-110mm
6. Print height: 150mm
7. Ink consumption: 1㎡/20ml, each 20ml can print 297*420mm size picture for 6 pieces.

8. Warranty: 3 years warranty excludes damages caused by user, excluding printhead, ink pump, ink tubes, ink dampers, motherboard..)

The uv ink set comes with the printer can print 900 pieces 297*420mm size pictures or 5400pcs phonecases. Normally the picture you want to print is much smaller than this, so you can print many more items with this amount of uv ink.

UV DTF Printing & UV Printing Procedure:

We offer remote technical support to all customers, and you will also receive specific video instruction manual of how to print, maintain etc.. Even new beginner of dtf printer can make it easily!

UV DTF Printing Procedure:
1. Upload picture to software
2. Put UV DTF Film A on tray
3. Set up software settings and click print

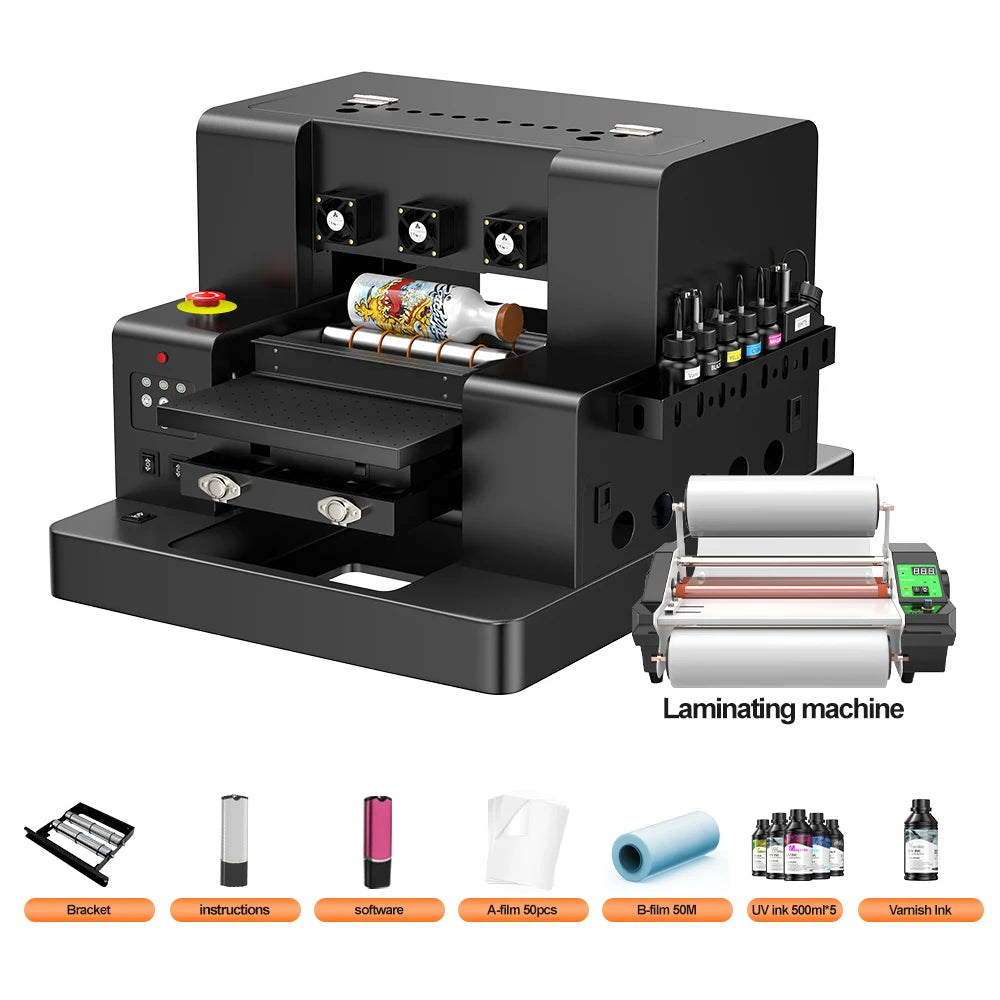

4. Using Laminating machine combines Film A and Film B
5. Tear off the Film B
6. Apply to products

Applicable:
Materials: Metal, Woods, Plywoods, Ceremics, Acrylic, Stone, Plastic, TPU, Leather, Glass, etc.
Items: For Irregular shape items

Applicable:

UV Printing Procedure:
1. Upload picture to software
2. Put items on tray
3. Set up software settings and click print
4. Finish

Materials: Metal, Woods, Plywoods, Ceremics, Acrylic, Stone, Plastic, TPU, Leather, Glass, etc.
Items: For Regular shape items, Flat, round items, like Acrylic board, Mugs, Pen, Woods, Puzzles, Wallet, Phonecase, Bottles, etc.
