SPECIFICATIONS

Description:

**Item Number:** H9804 FOXHOUND
**Product Description:** 1/10 Electric Rally Car
**Product Type:** 90% RTR / 4WD Brushless Electric Version
**Weight (without battery):** 1.6 KG
**Recommended Battery (not included):** 2S or 3S
**Battery Size:** Less than 96*46*28 mm (L x W x H)
**Car Speed:** 3S / 90 KM+; 2S / 65 KM+
**Motor:** 3652 / 4000KV
**Servo:** Digital Metal Gear 9KG
**ESC:** "Hobbywing" WP-10BL60-RTR / 60A
**Number of Differentials:** Center differential design, 3P
**Remote Control/Receiver:** 2.4G / 4CH
**Wheelbase:** 260 mm
**Length:** 445 mm
**Width:** 190 mm
**Height:** 145 mm
**Ground Clearance:** 15 mm
**Wheels (Diameter/Width):** 72*25 mm
**Gear Ratio:** 6.5:1
**Color Box Dimensions:** 595*260*175 mm
**Body Shell:** 1.2 mm (Thickness) PC Soft Shell

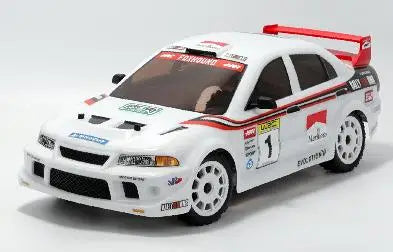

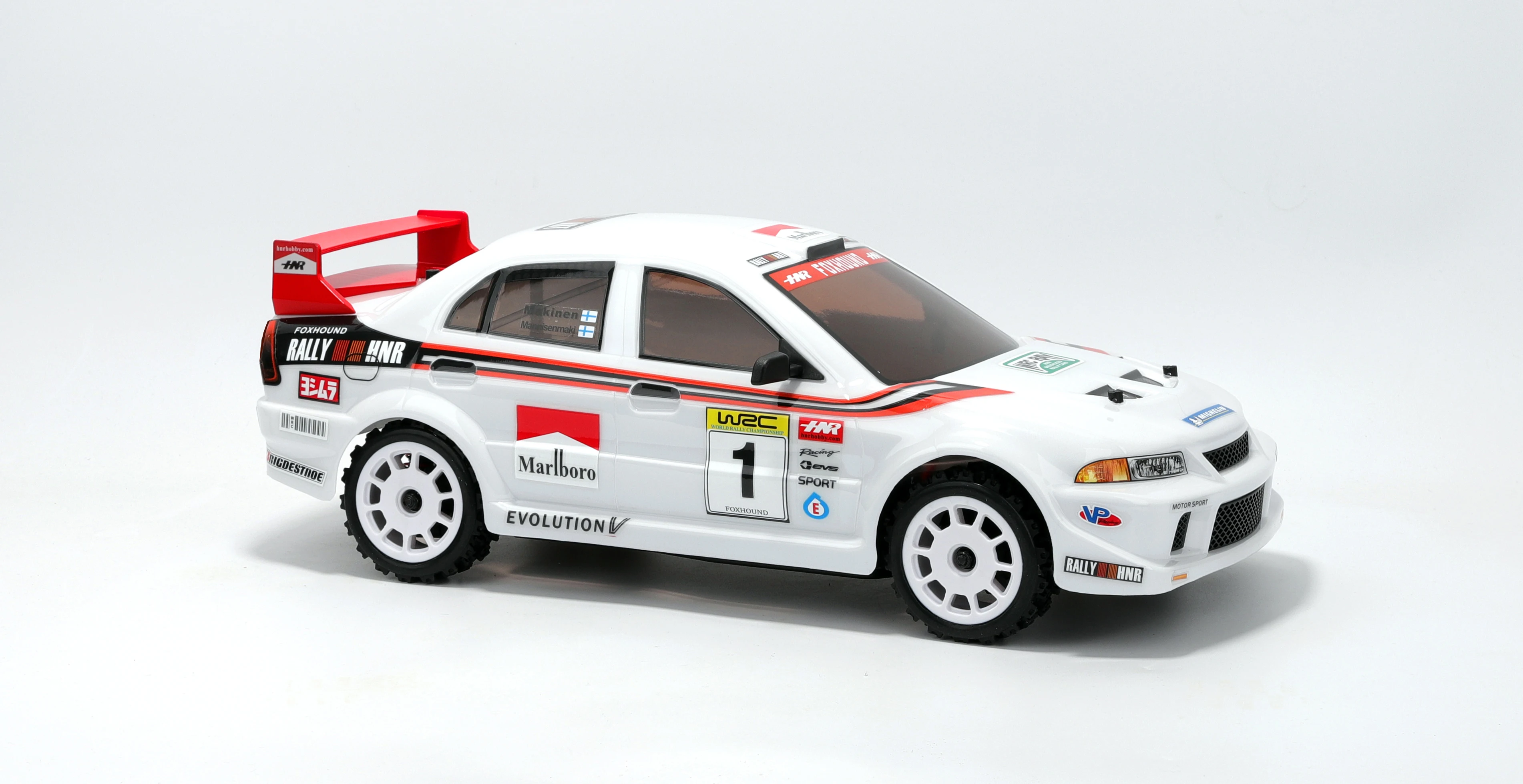

**Body Shell Color:** White / Red
**Remote Control Range:** 150M+
**Primary Materials:** Plastic PA / Metal / Rubber / Electronics
**Related Certifications:** EN71, ROHS, CE

Features:

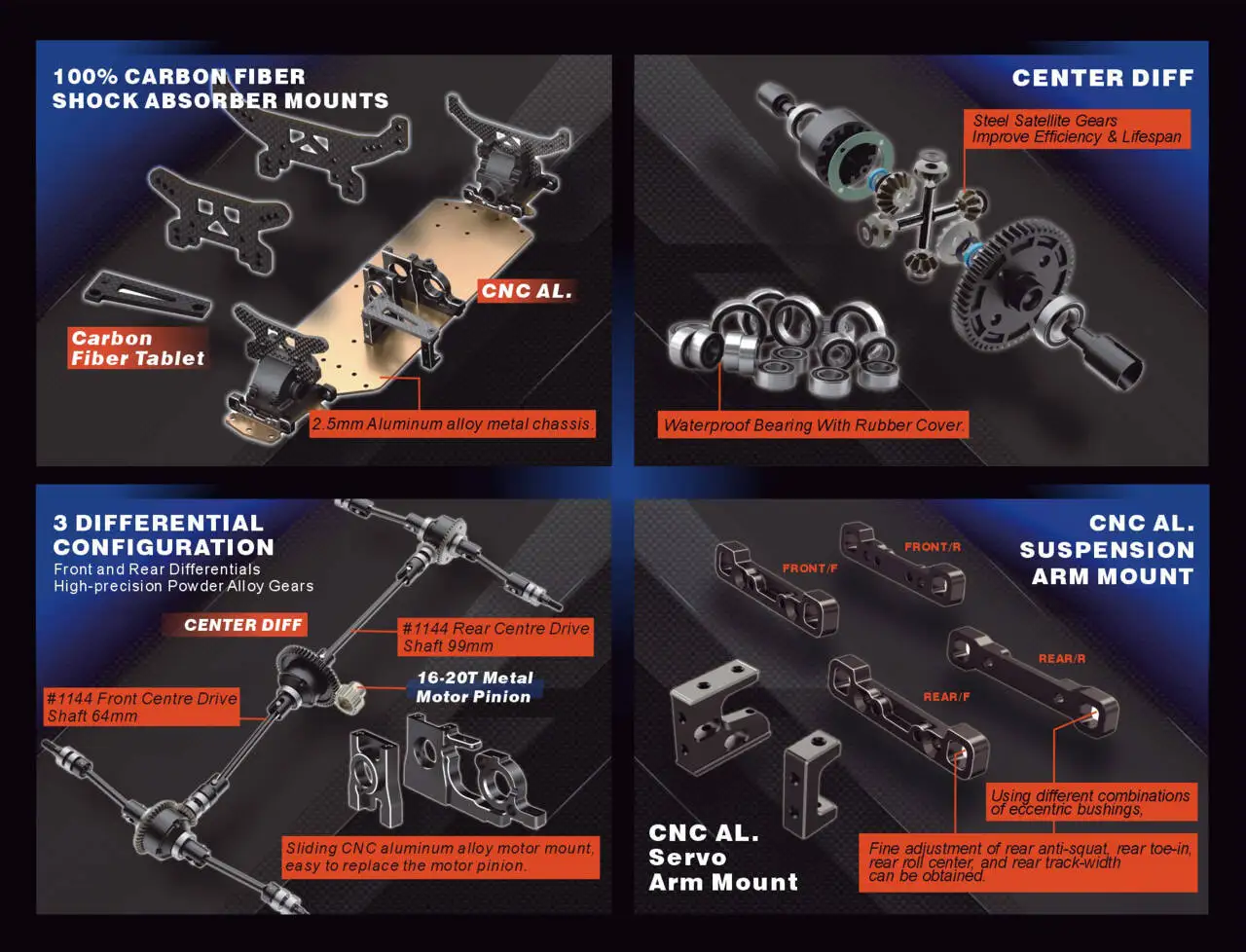

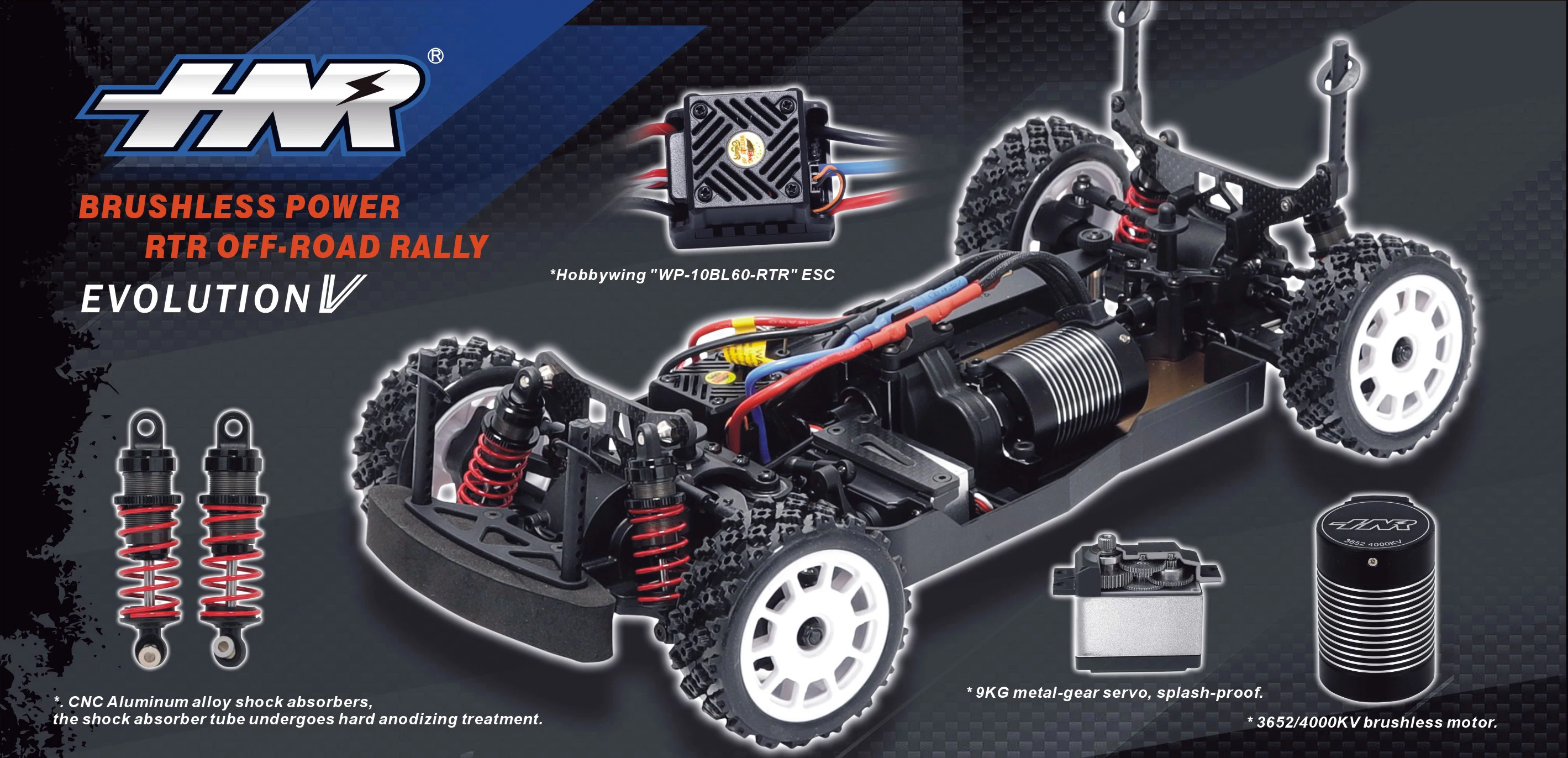

- **2.5MM Aluminum Alloy Chassis** with 100% Carbon Fiber Shock Towers front and rear.
- **Slider-type CNC Aluminum Motor Mount** for easy gear replacement.
- **Front, Center, and Rear Differential Design** equipped with high-precision powdered alloy gears and dustproof, waterproof bearings with rubber covers.
- **Adjustable Links** throughout the vehicle for various parameter adjustments.
- **CNC Aluminum Shock Absorbers** with hard anodized shock bodies.

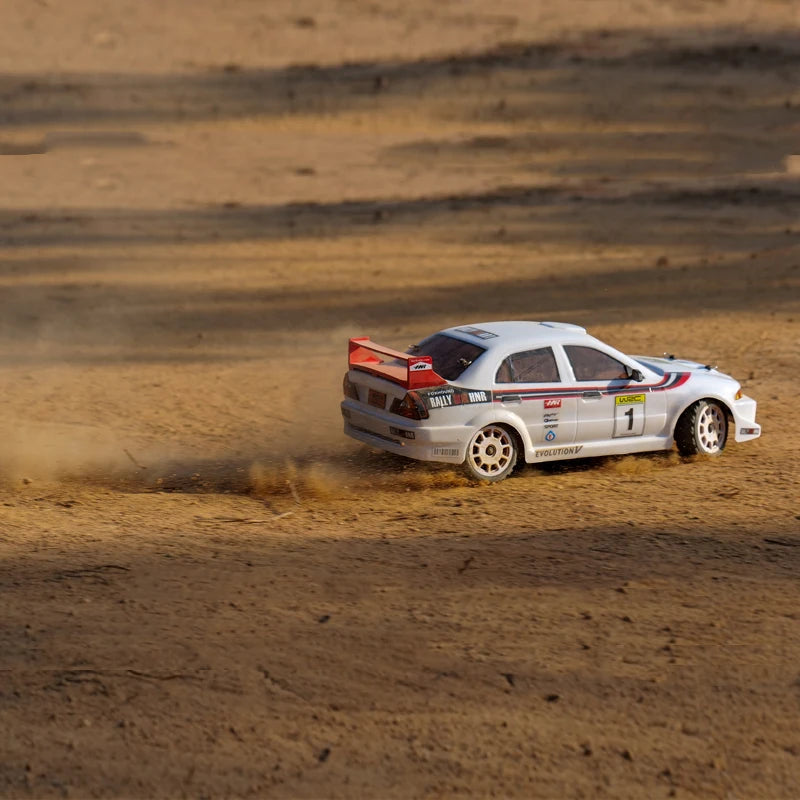

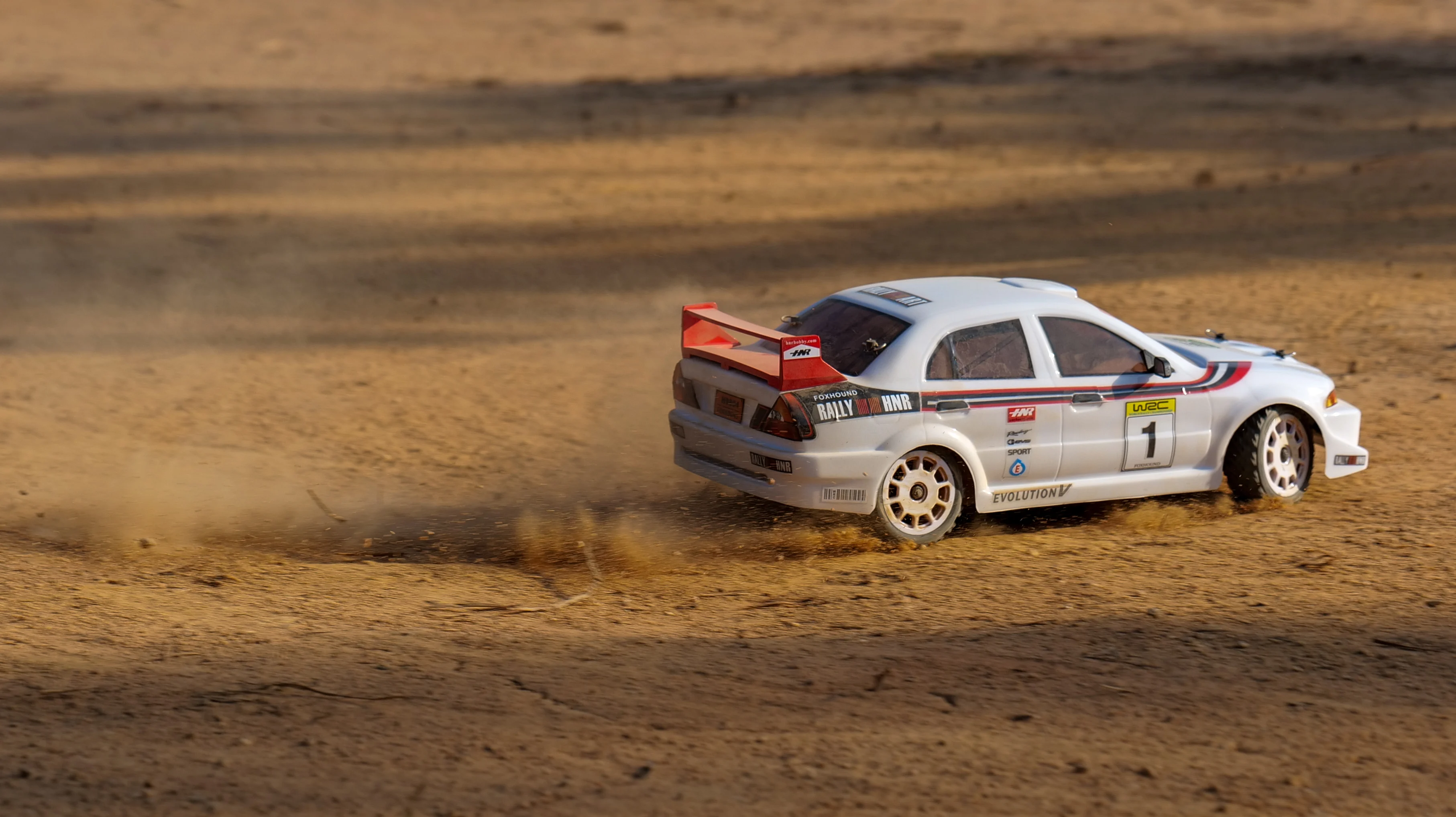

- **Highly Durable and High-Grip Rubber Tires** that perform excellently on dirt surfaces.
- **Upgraded CNC Aluminum Materials** for all arms, servo mounts, and steering linkages, providing stronger support for the car's performance.
- **Hobbywing "WP-10BL60-RTR" Electronic Speed ​​Controller (ESC)** with outstanding waterproof and dustproof performance and an independent fan.
- **Supports 6V and 7.4V Switching**, easily driving various high-torque servos, with an instantaneous current of up to 15A.
- **Multiple Protection Features** including low battery voltage protection, over-temperature protection, and throttle failure protection.
- **3652/4000KV Brushless Motor** for better motor linearity and stable rotor magnetism.
- **9KG Metal Gear Servo** with splash-proof design.
- **1.2MM Thick PC Painted Simulation Body Shell**.

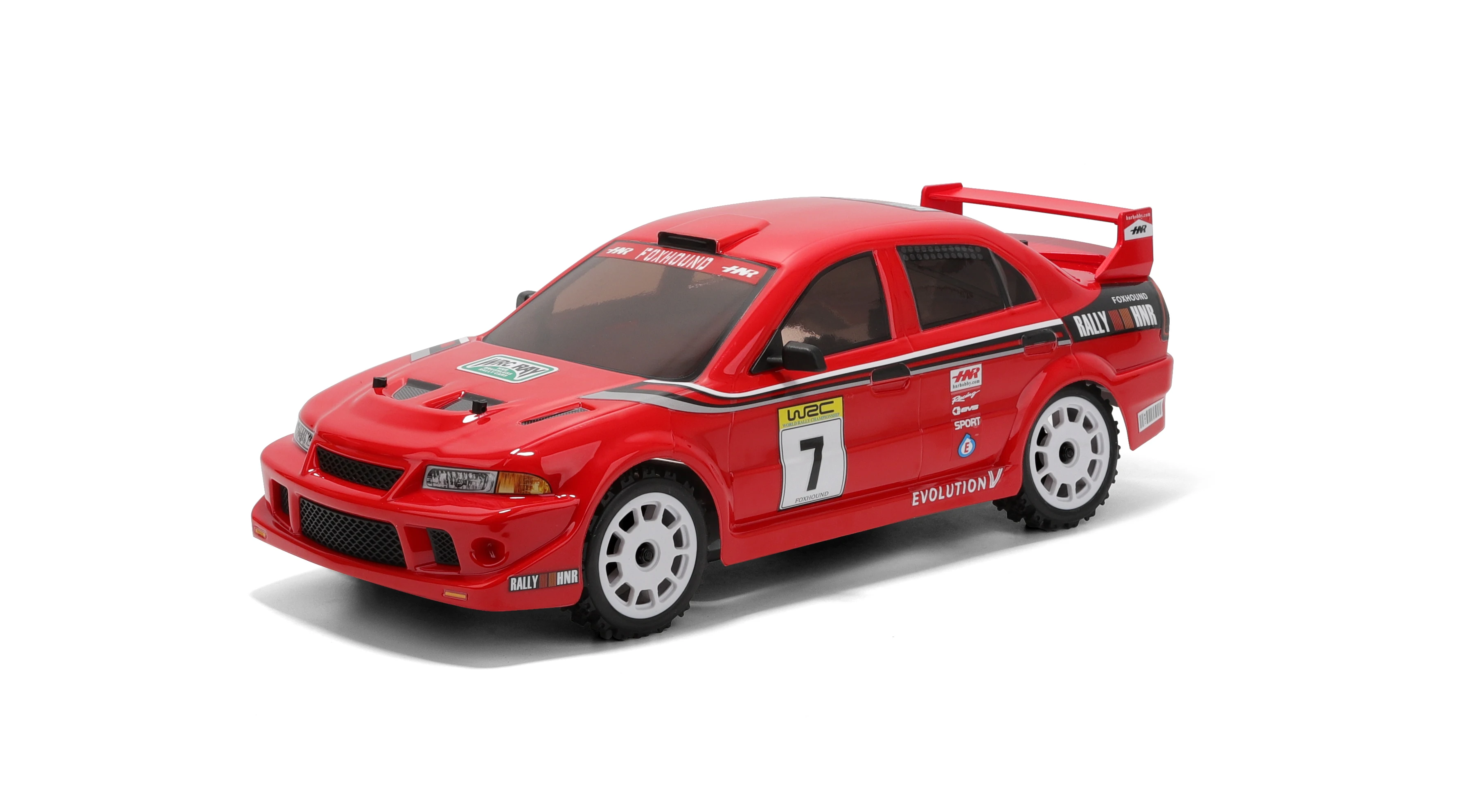

- **Two Color Options Available at Launch:** Red and White.

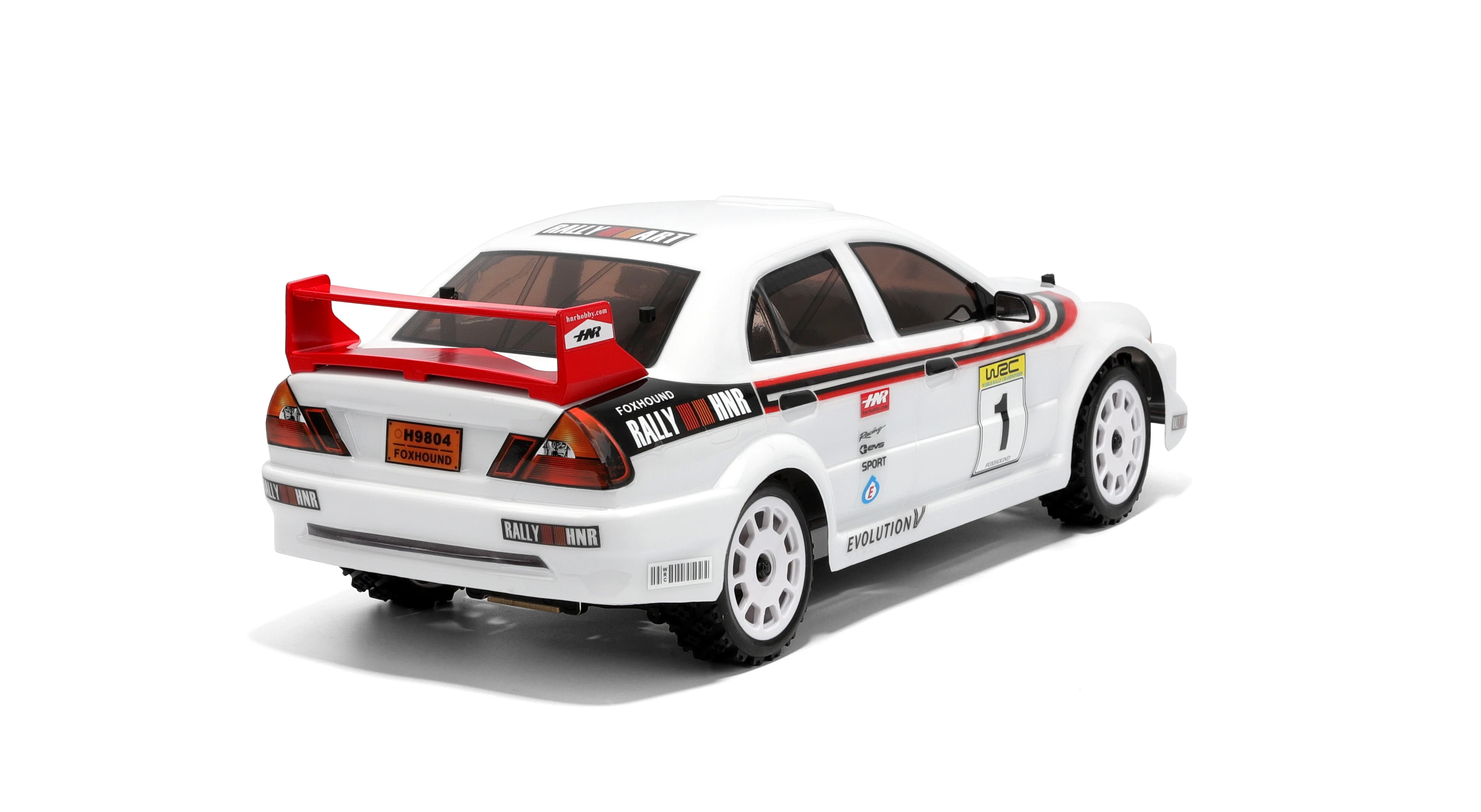

- **Body Shell Includes Plastic Parts** such as a rear spoiler and side mirrors.

---

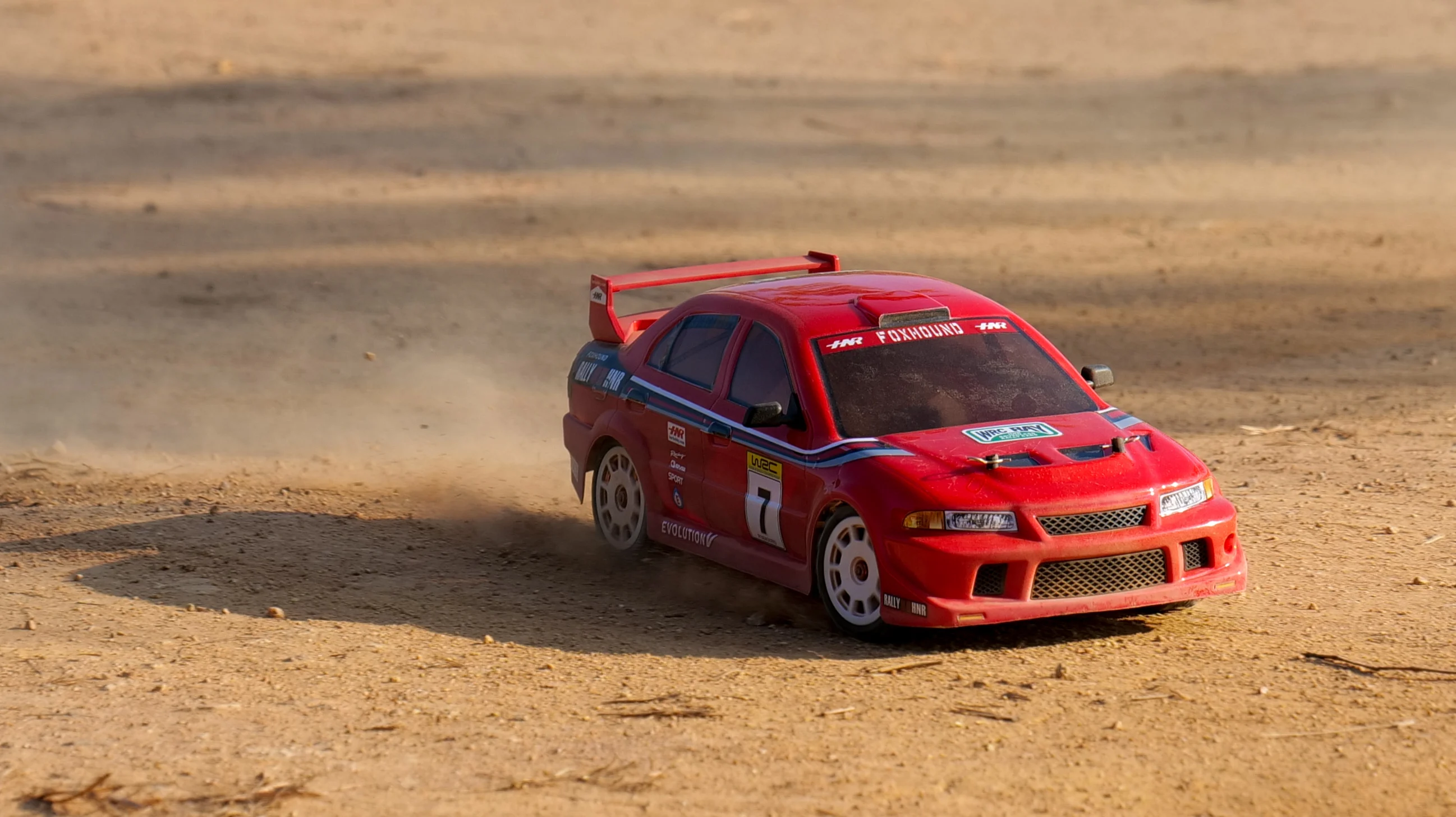

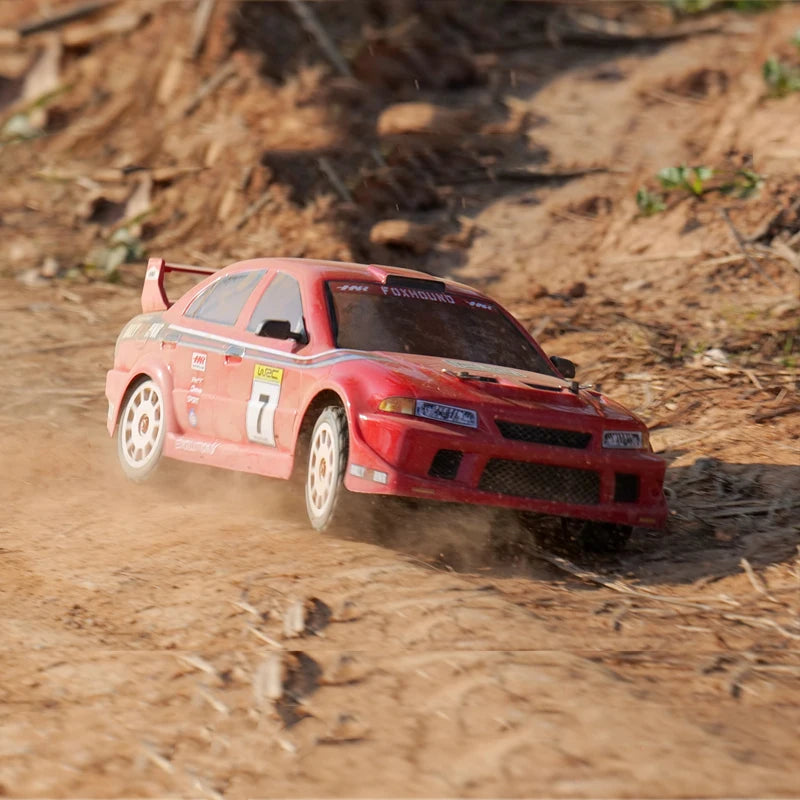

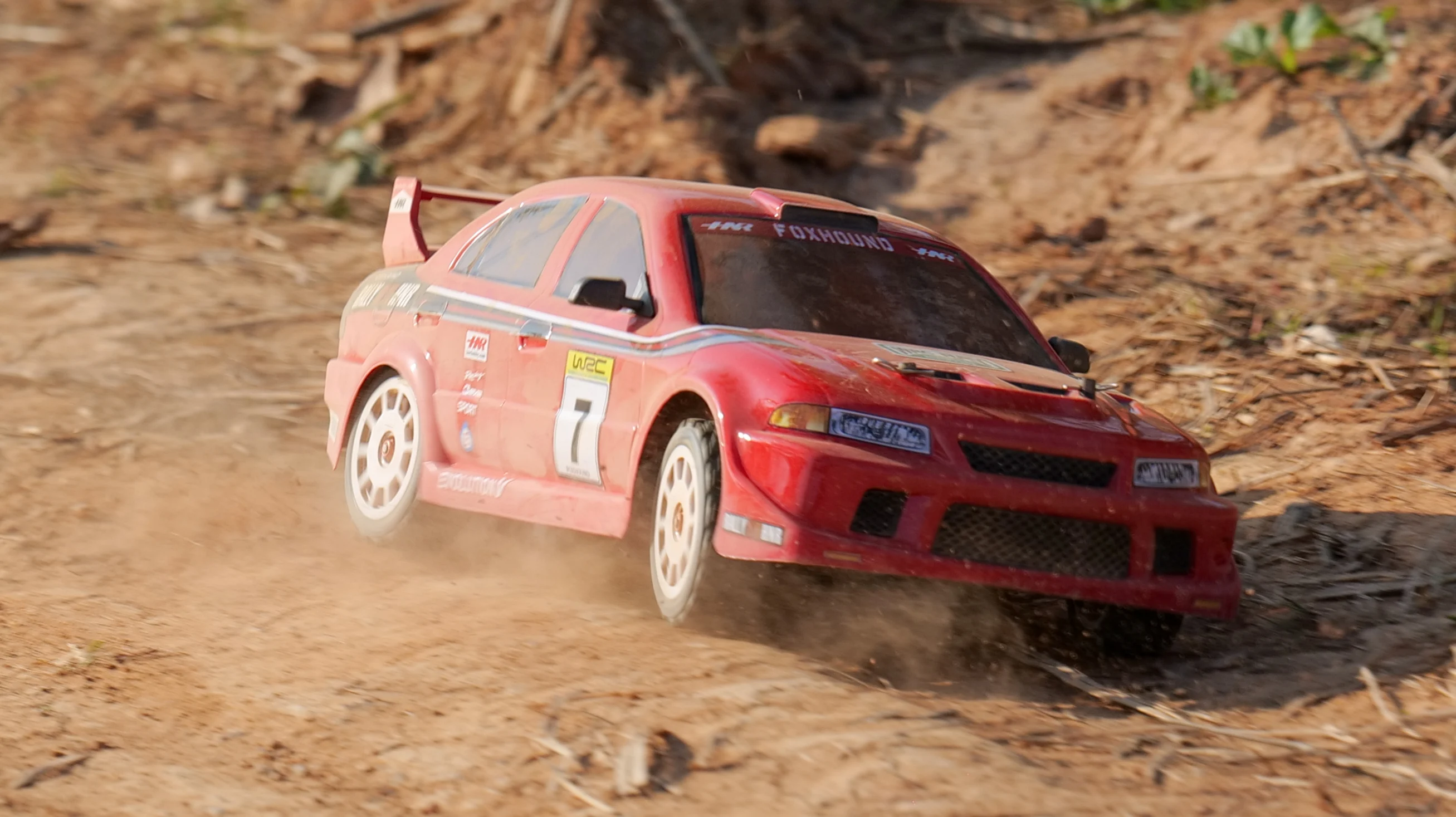

In December 2024, HNR launched a new 1/10 brushless power rally car, codenamed "FOXHOUND." The FOXHOUND is classified as a 1/10 standard realistic rally car and is compatible with many available realistic car shells on the market.

The "FOXHOUND" features a 2.5mm high-strength aluminum alloy chassis, carbon fiber shock towers, and high-precision bearings. Its transmission system uses a front, center, and rear differential design paired with high-precision powdered alloy gears, offering a wide range of professional parameter settings for excellent handling.

The slider-type CNC aluminum motor mount is equipped with a 3652 motor and a Hobbywing 60A electronic speed controller (ESC) for brushless power, capable of supporting a 3S high-rate lithium battery output, with a maximum speed of up to 90 kilometers per hour.

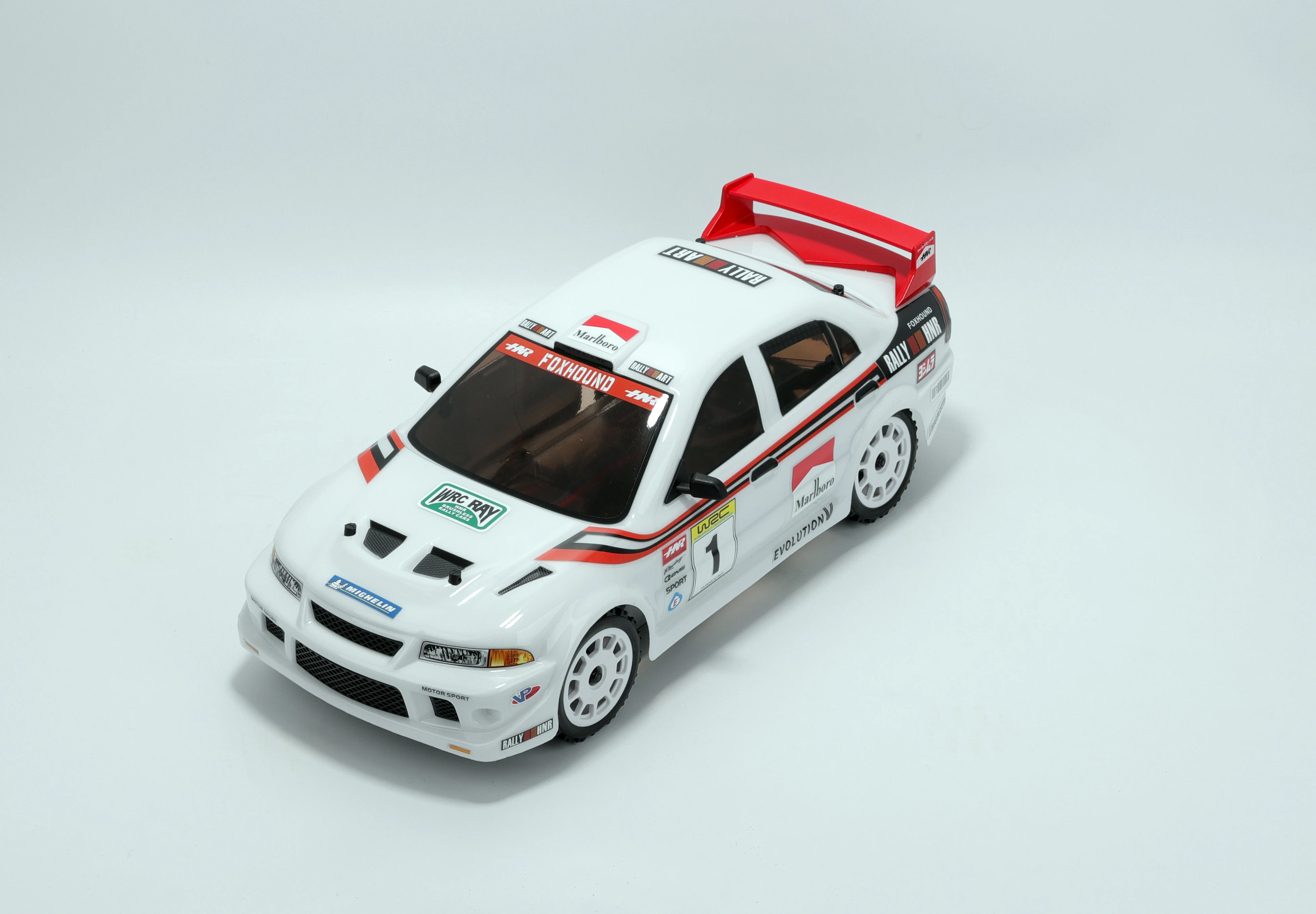

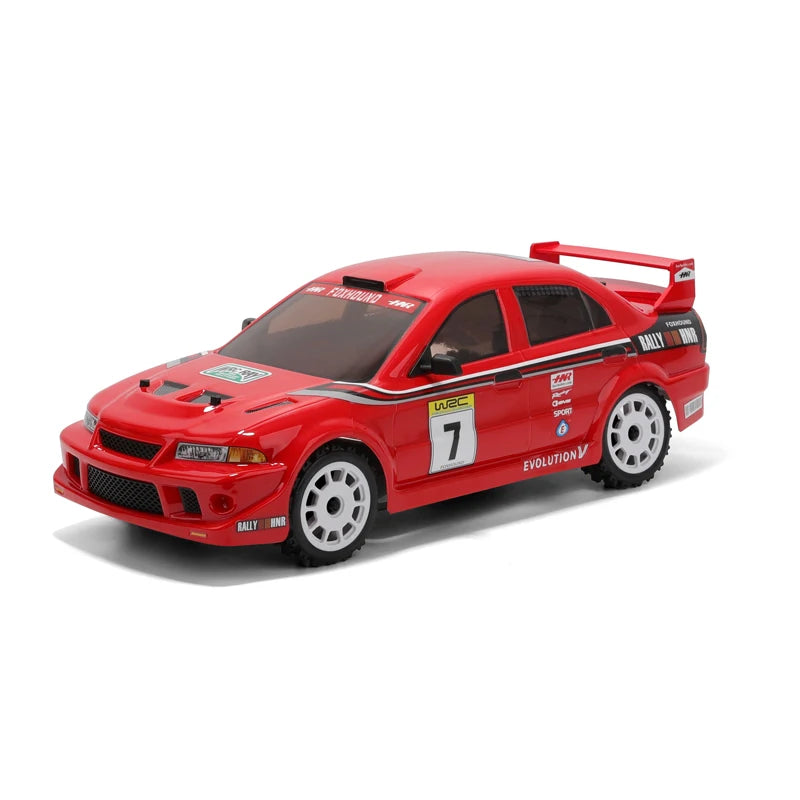

The "FOXHOUND" body shell is made of 1.2mm thick PC material, finished with environmentally-friendly spray paint and featuring transparent windows. The model number is H9804, and it is 90% ready to run (RTR) upon shipment (the factory does not include a battery and charger).
