SPECIFICATIONS
Bore and Stroke: 66X62MM
Brand Name: NoEnName_Null
Clutch Method: Manual Wet Multi-Plate
Compression Ratio: 11 : 1
Dimension: 460*325*230MM
Displacement (ml): 212CC
External Testing Certification: ce
Gears: Standard 5 gears 1N2345
Hign-concerned Chemical: None
Ignition Method: CDI
Item Diameter: CCC
Item Height: CCC
Item Length: CCC
Item Type: engines
Item Weight: 29000
Item Width: CCC
Material: CCC
Max Power: 13/9500KW/r/min
Max Torque: 15.7/8000N.M/r/min
Model Name: engine Electric Start
No. of Cylinders: 1 Cylinder
Origin: Mainland China
Special Features: for Daytona Anima 190, ZS190, YX150, ZS155
Starting Method: Kick/Electrical start
NOTE : As per courier requests, all our engines are delivered without engine oil. You MUST fill in the engine oil before testing the engine.
Perfect replacement for Daytona Anima 190, ZS190, YX150, ZS155...... Good choice for racers

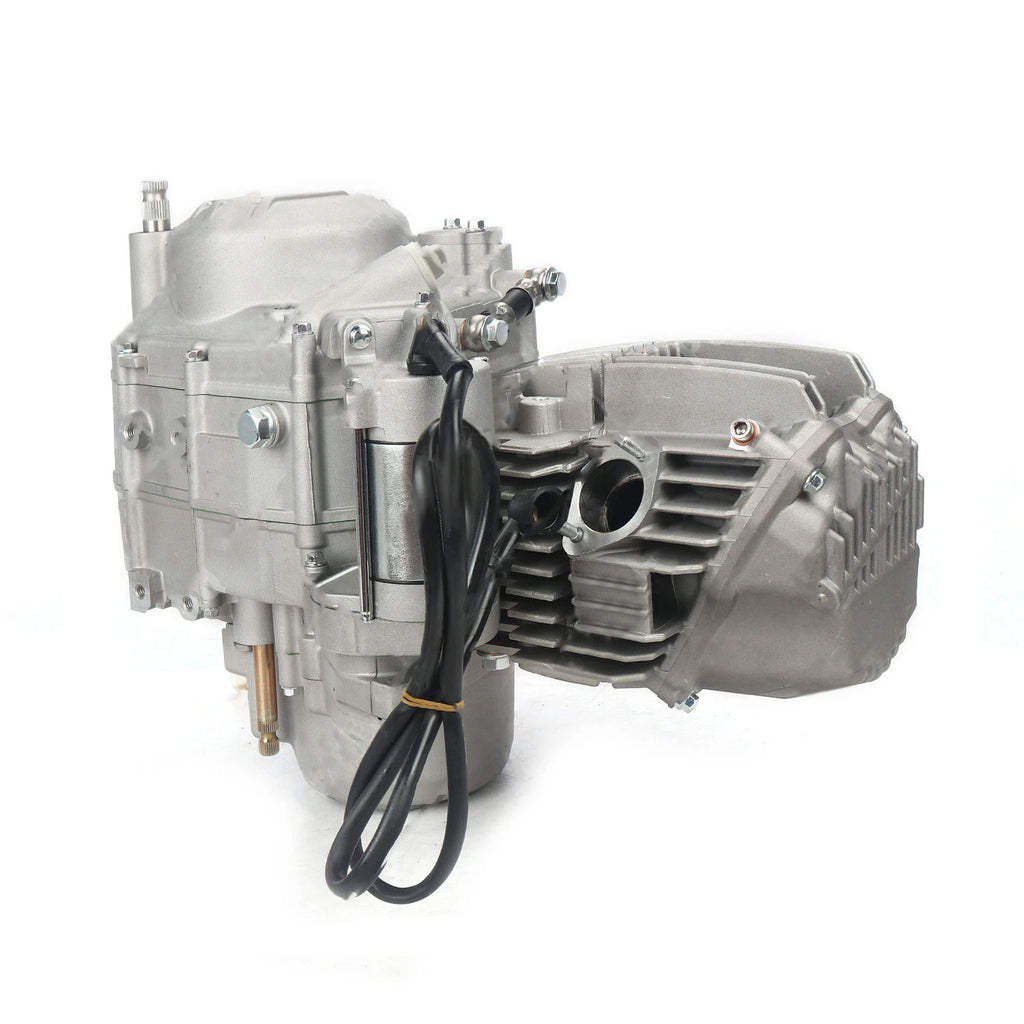

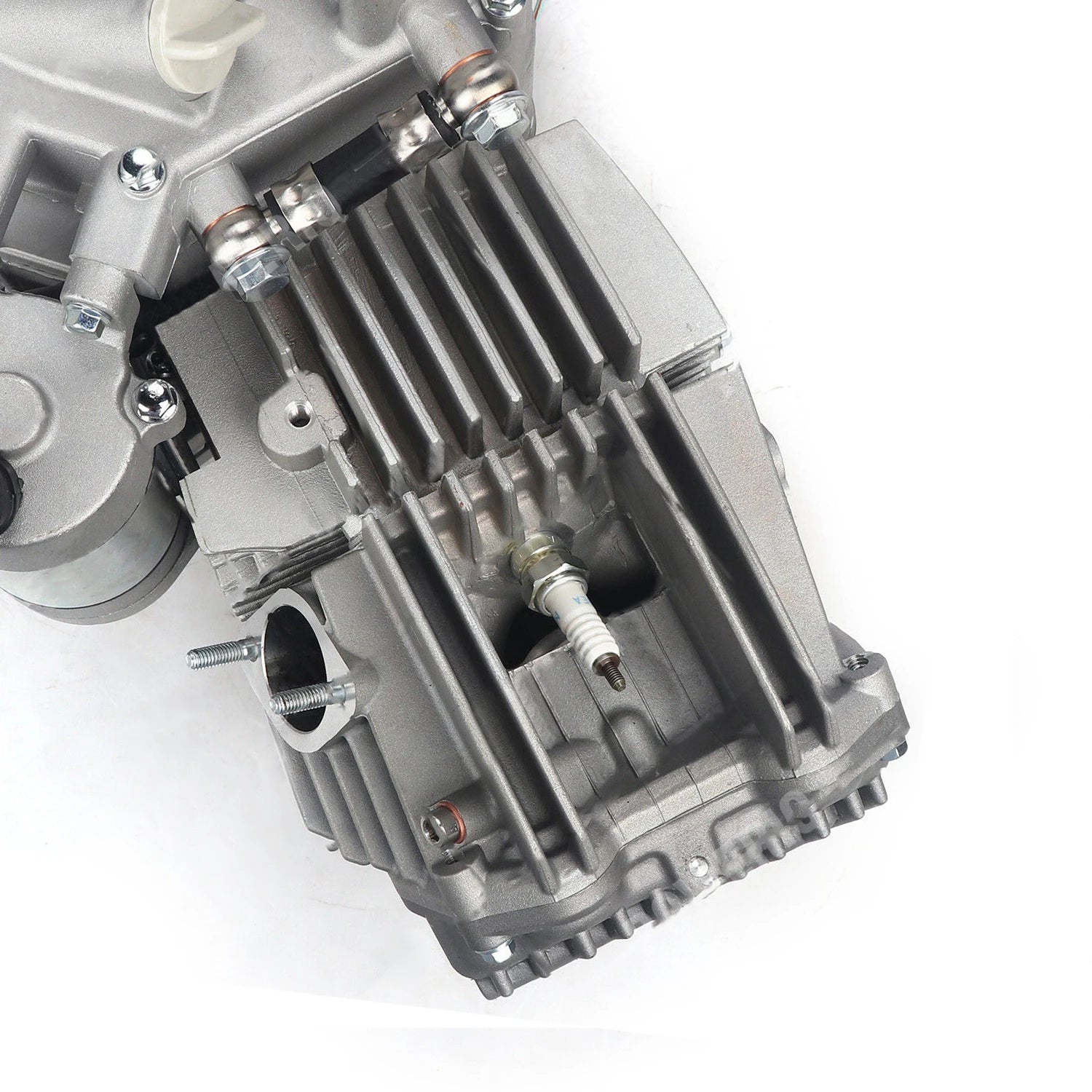

Engine Type: Single Cylinder,4-Stroke，2 valves，oil cooled, camshaft upward tilting (10°)
Displacement： 212CC
Dimension: 460*325*230MM
Net Weight: 24KG
Bore and Stroke： 66X62MM
Max Power： 13/9500KW/r/min
Max Torque： 15.7/8000N.M/r/min
Starting Method： Kick/Electrical start
Lubrication method : ≤367 g/kW·h
Ignition Method： CDI
Gears： Standard 5 gears 1N2345
Clutch Method： Manual Wet Multi-Plate
Compression Ratio 11 : 1
Lubrication Method Force-feed & splash

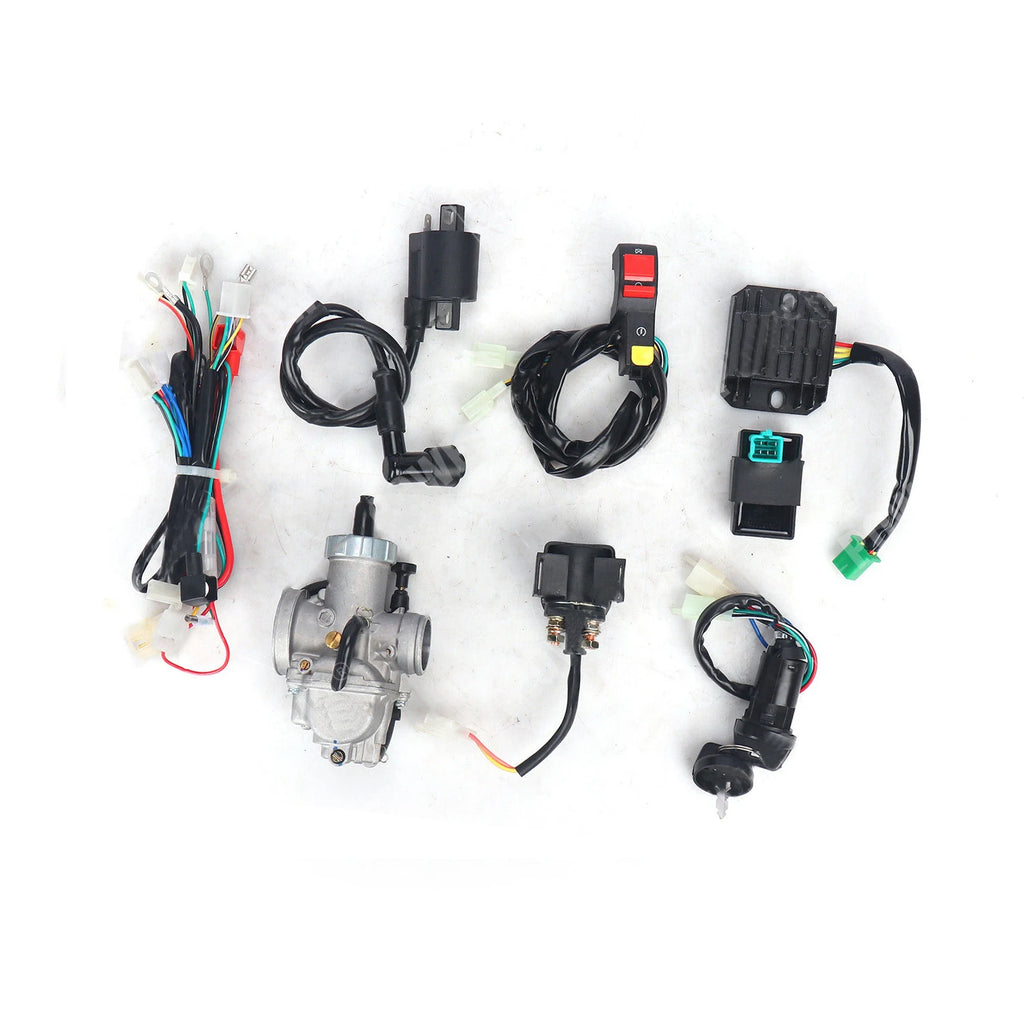

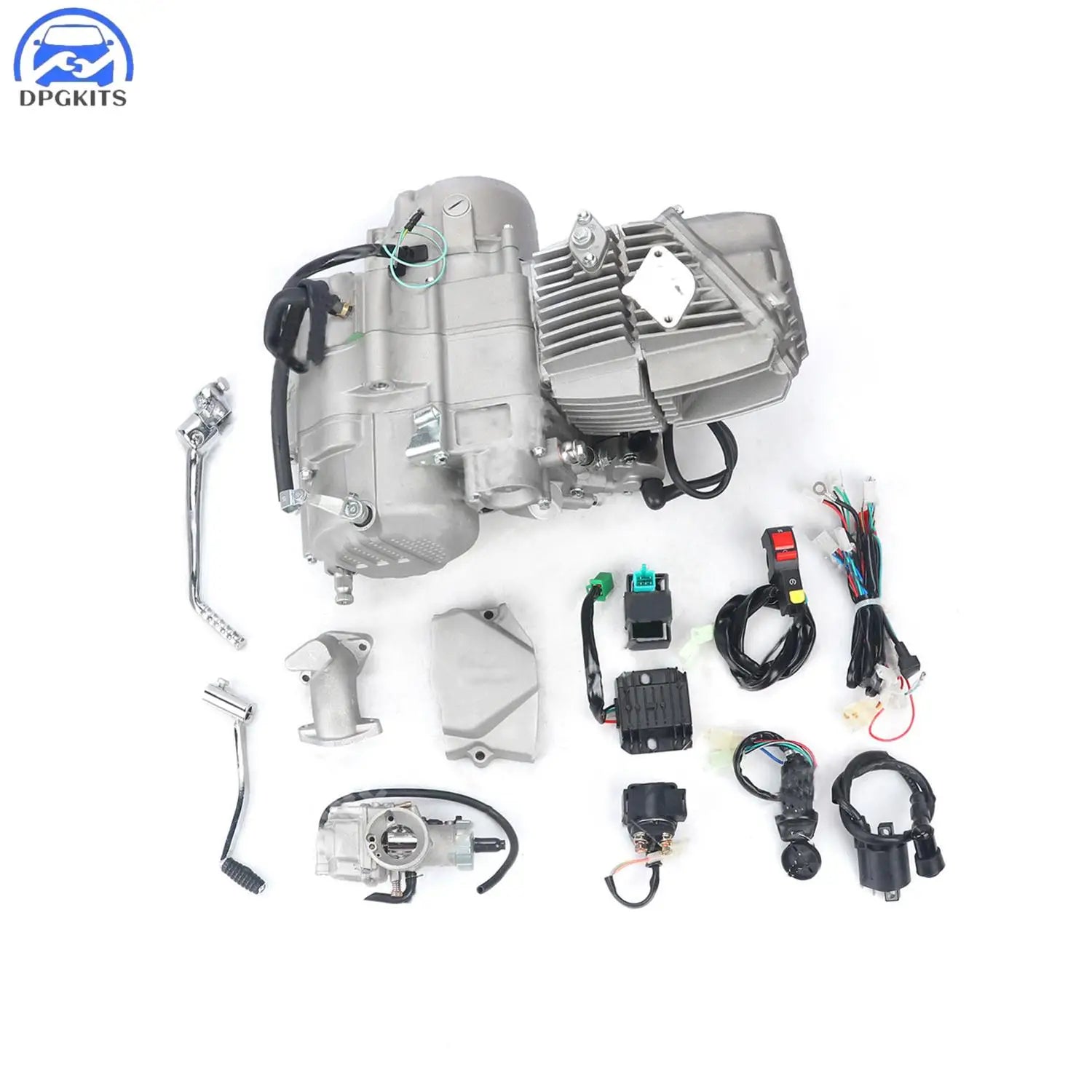

Free engine kit: carbuetor, electrical parts kit(CDI, relay, coil, rectifier), wiring hardness,kill switch
*Our electrical parts kit has been optimized for the ZS212 engine. Our kit is recommended to be used for the engine for better performance.
